เครื่องเติมอากาศ (ปั๊มลม) Hiblow รุ่น HP Series แบรนด์จากประเทศญี่ปุ่น โครงสร้างทำมาจากอลูมิเนียม มาพร้อมกับอุปกรณ์ลดเสียง (Sound Absorbor) เพื่อช่วยลดเสียงที่เกิดขึ้นจากการทำงาน ทำให้เกิดเสียงเบา นอกจากนี้ยังได้พัฒนา เหมาะสำหรับใช้งานใน บ่อเลี้ยงปลาสวยงาม และระบบบำบัดน้ำเสีย
Air Blow Hiblow Model HP Series brand from Japan, is constructed using aluminum and comes with a Sound Absorber device to help reduce operational noise, resulting in a quieter operation. Additionally, it has been developed to be suitable for applications such as maintaining beautiful fish ponds and wastewater treatment systems.
เครื่องเติมอากาศ Hiblow รุ่น HP Series โครงสร้างของตัวปั๊ม ทำจากอลูมิเนียม ช่วยระบายความร้อนได้ดี พร้อมระบบ Safety Screw เพื่อป้องกันความเสียหายของอุปกรณ์ภายในปั๊มลม กรณีที่ไฟตก ไฟกระชาก ช่วยยืดอายุการใช้งานของปั๊มลม เมื่อเกิดความผิดพลาดขึ้น ตัวน๊อต Safety Screw นี้จะตัดการทำงานของอุปกรณ์
HP series มีระบบการทำงานเป็นแบบ “ดับเบิ้ลไดอะแฟรม” (มีแผ่นไดอะแฟรม 2 ข้าง) โดยใช้หลักการเหนี่ยวนำแกนแม่เหล็กไฟฟ้า จึงสามารถดูดและเป่าในเวลาเดียวกัน ทำให้ลมที่ออกมาต่อเนื่องกว่าระบบอื่นๆ ใช้งานง่าย ใช้ไฟ 220V. สามารถเสียบปลั๊ก ใช่งานได้ทันที การดูแลรักษาที่สามารถทำได้ง่าย โดยการเปลี่ยนชิ้นส่วนตามระยะเวลาใช้งานที่กำหนดในคู่มือ
The Hiblow HP Series air pump is constructed with aluminum, which helps in efficient heat dissipation. It features a Safety Screw system to protect the internal components of the air pump from damage in case of power fluctuations or surges. This safety feature extends the lifespan of the air pump by disabling its operation during such events. The HP series operates on a “double diaphragm” principle, with two diaphragms on each side. It utilizes electromagnetic attraction and repulsion to both suck in and blow out air simultaneously, resulting in continuous airflow compared to other systems. It is easy to use, requiring a 220V power supply that can be plugged in for immediate operation. Maintenance is simple and can be done by replacing components according to the recommended usage intervals provided in the user manual.

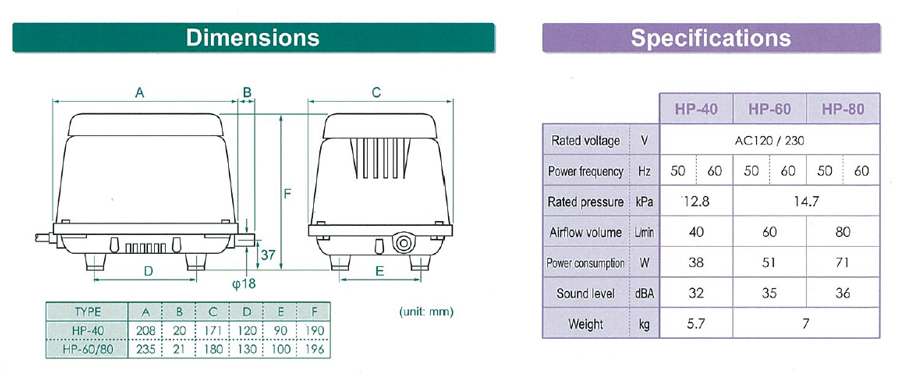

TYPE | A | B | C | D | E | F |
---|---|---|---|---|---|---|
Hiblow HP-40 | 208 | 20 | 171 | 120 | 90 | 190 |
Hiblow HP-60/80 | 235 | 21 | 180 | 130 | 100 | 196 |
Hiblow HP-100/120/150/200 | 256 | 20 | 200 | 140 | 110 | 222 |
Model | Airflow Volume (LPM) | Depth (mH₂o) | Power Cinsumption (W) | Rated Voltage (V) | Sound Level (dBA) | Weight (kg) |
---|---|---|---|---|---|---|
Hiblow HP-40 | 40 | 1.3 | 38 | AC220V/50Hz | 32 | 5.7 |
Hiblow HP-60 | 60 | 1.5 | 51 | AC220V/50Hz | 35 | 7 |
Hiblow HP-80 | 80 | 1.5 | 71 | AC220V/50Hz | 36 | 7 |
Hiblow HP-100 | 100 | 1.8 | 95 | AC220V/50Hz | 38 | 8.5 |
Hiblow HP-120 | 120 | 1.8 | 115 | AC220V/50Hz | 40 | 8.5 |
Hiblow HP-150 | 150 | 2 | 125 | AC220V/50Hz | 45 | 9 |
Hiblow HP-200 | 200 | 2 | 210 | AC220V/50Hz | 46 | 9 |
