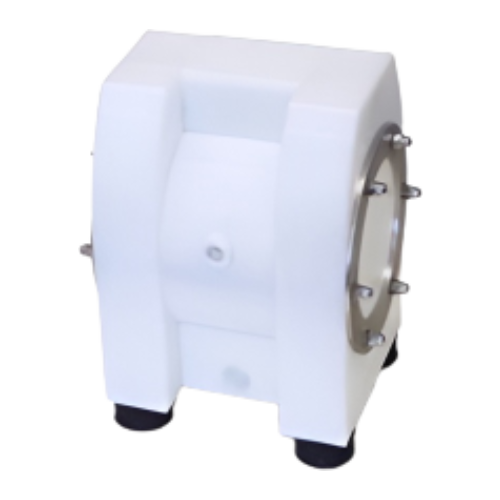

ปั๊มไดอะแฟรม Diaphragm Pump แบรนด์ All-Flo รุ่น D S Series (Secialty Pump) ได้รับมาตรฐาน FDA (องค์การอาหารและยาแห่งสหรัฐอเมริกา) มีความแข็งแรงทนทาน ติดตั้งง่าย ถูกหลักสุขอนามัย มีขนาดท่อ และวัสดุเรือนปั๊ม ให้เลือกใช้หลากหลาย สามารถเลือกใช้ได้ตามความเหมาะสมของงาน และสามารถถอดประกอบตัวปั๊มเพื่อทำความสะอาดได้
ALL-FLO D Series Secialty Pump, model D S Series (Specialty Pump), is equipped with FDA (Food and Drug Administration) standards. It is sturdy, durable, easy to install, and compliant with health regulations. It offers a variety of pipe sizes and pump housing materials to choose from, allowing for suitability in different tasks. Additionally, the pump can be disassembled for easy cleaning.
ปั๊มไดอะแฟรม หรือ ไดอะแฟรมปั๊ม Diaphragm Pump แบรนด์ All-Flo รุ่น D Series (Secialty Pump) เป็นปั๊มที่สามารถใช้งานได้กับสารเคมี สารกัดกร่อน หรือสารไวไฟได้ โดยที่ไม่ต้องใช้ไฟฟ้าในการทำงาน ปั๊มไดอะแฟรมจะถูกต่อใช้งานคู่กับปั๊มลม Diaphragm Pump ส่วนการออกแบบของปั๊มไดอะแฟรมจะถูกออกแบบมาให้มีความเรียบง่าย มีความแข็งแรงทนทาน ติดตั้งง่าย ซึ่งให้แรงดันสูงสุดอยู่ที่ 120 psi หรือ 8.2 bar ซึ่งไดอะแฟรมปั๊มแบรนด์ All-Flo ได้รับมาตรฐาน FDA (องค์การอาหารและยาแห่งสหรัฐอเมริกา) ถูกหลักสุขอนามัย มีขนาดท่อ และวัสดุเรือนปั๊ม ให้เลือกใช้หลากหลาย สามารถเลือกใช้ได้ตามความเหมาะสมของงาน และสามารถถอดประกอบตัวปั๊มเพื่อทำความสะอาดได้
All-Flo D Series (Specialty Pump) is a Diaphragm Pump, also known as an AODD (Air Operated Double Diaphragm) Pump, that can be used with chemicals, corrosive substances, and flammable materials without the need for electricity. It is commonly paired with an air-operated diaphragm pump. The design of the diaphragm pump is simple, robust, and easy to install. It can provide a maximum pressure of 120 psi or 8.2 bar. The All-Flo brand diaphragm pump is FDA compliant (U.S. Food and Drug Administration) and meets health and safety standards. It offers a variety of pipe sizes and pump housing materials, allowing for customization based on the specific requirements of the application. Additionally, the pump can be disassembled for easy cleaning.
PERFORMANCE SPECIFICATIONS | ALL-FLO D038 | ALL-FLO D050 | ALL-FLO D100 | ALL-FLO D150 | ALL-FLO D200 |
---|---|---|---|---|---|
Fluid Connection Type | FNPT/BSPT | FNPT/BSPT | FNPT/BSPT | FNPT/BSPT | FNPT/BSPT |
Fluid Connection Size (in) | 3/8" | 1/2" | 1" | 1-1/2" | 2" |
Air Inlet Connection (in) | 1/8" FNPT | 1/4" FNPT | 1/4" FNPT | 1/2" FNPT | 1/2" FNPT |
Dry: 3.3 ft-H2O | Dry: 6.6 ft-H2O | Dry: 9.8 ft-H2O | Dry: 13.1 ft-H2O | Dry: 16.4 ft-H2O | |
Max Lift ft-H2O (m-H2O) | (1 m-H2O) | (2 m-H2O) | (3 m-H2O) | (4 m-H2O) | (5 m-H2O) |
Wet: 29.5 ft-H2O | Wet: 29.5 ft-H2O | Wet: 29.5 ft-H2O | Wet: 29.5 ft-H2O | Wet: 29.5 ft-H2O | |
(9 m-H2O) | (9 m-H2O) | (9 m-H2O) | (9 m-H2O) | (9 m-H2O) | |
Max Solids inches (mm) | 1/8" (3 mm) | 5/32" (4 mm) | 1/4" (6 mm) | 7/20" (9 mm) | 7/16" (11 mm) |
Max Flow Rate gpm (lpm) | 6 gpm (22 lpm) | 14 gpm (52 lpm) | 31 gpm (117 lpm) | 100 gpm (390 lpm) | 185 gpm (695 lpm) |
