ถังแรงดัน BIO TANK รุ่น HORIZONTAL TANKS Series ถังเพิ่มความดันที่มีเมมเบรนหรือถังไดอะแฟรมสามารถเปลี่ยนได้โดยยางไดอะแฟรม ทำมาจาก Chlorobutyl Rubber ที่มีคุณภาพสูง สามารถใช้งานสำหรับงานด้านอาหารและน้ำดื่มออกแบบให้เหมาะสำหรับการติดตั้งได้ง่ายขึ้นในทุกๆที่

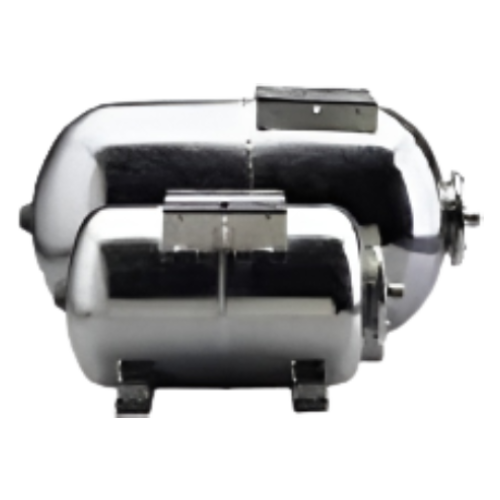

Pressure Tank BIO TANK HORIZONTAL TANKS Series The pressure tank, which can be equipped with either a membrane or a diaphragm, allows for easy interchangeability using a rubber diaphragm. It is made of high-quality Chlorobutyl Rubber and is designed to be suitable for applications in the food and drinking water industry. Additionally, it is designed for easy installation in various locations.
Pressure Tank BIO TANK HORIZONTAL TANKS Series is a pressure tank that allows for interchangeable membranes or diaphragms, with the diaphragm made of high-quality chlorobutyl rubber. This ensures a seamless rubber surface, guaranteeing durability and safety throughout its service life. The non-stretchable and non-expanding diaphragm, along with the durable and resistant plastic dome, provides confidence in maintaining cleanliness. The pressure tank itself is a floating diaphragm type, coated with multiple layers of galvanized steel to prevent corrosion and inhibit rust formation.
Model | Capacity | Diameter | H height | Max.pressure | Precharge | Connection |
---|---|---|---|---|---|---|
Litres | mm | mm | ||||
BIOS-19H | 19 | 340 | 370 | 10/16/25 bar | 2.0 bar | 1"G inox INOX – |
BIOS-24H | 24 | 340 | 430 | 10/16/25 bar | 2.0 bar | 1"G inox INOX – |
BIOS-35H | 35 | 400 | 450 | 10/16/25 bar | 2.0 bar | 1"G inox INOX |
BIOS-50H | 50 | 400 | 610 | 10/16/25 bar | 2.0 bar | 1"G inox INOX |
BIOS-60H | 60 | 440 | 730 | 10/16/25 bar | 2.0 bar | 1"G inox INOX |
BIOS-80H | 80 | 520 | 805 | 10/16/25 bar | 2.0 bar | 1"G inox INOX |
BIOS-100H | 100 | 550 | 820 | 10/16/25 bar | 3.0 bar | 1"G inox INOX |
