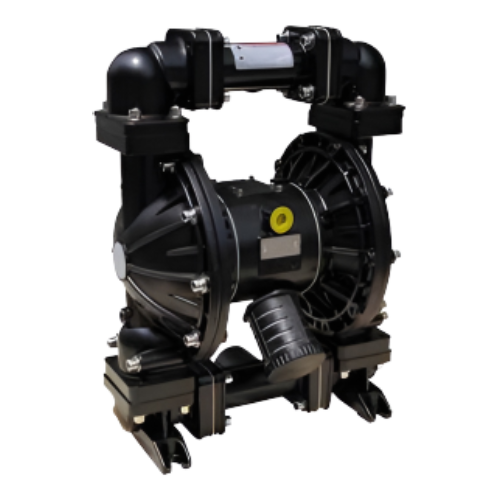

ปั๊มไดอะแฟรม (AODD Pump) CHEMPRO รุ่น DP-Aluminum ประเภท AL มีจุดเด่นในเรื่องของทนทานการกัดกร่อนจากสารเคมีได้ดี ไดอะแฟรมปั๊ม มีการทำงานแบบดูด-อัด ออกแบบมาอย่างดีเยี่ยม มีความต้านทานต่อการกัดกร่อน ทนต่อแรงดัน ได้ดีและมีอายุการใช้งานยาวนาน
CHEMPRO DP Series Aluminum of AODD Pump is made of, specifically AL (Aluminum). It is known for its excellent resistance to chemical corrosion. The AODD pump operates on the principle of suction and compression and is designed to be excellent, resistant to corrosion, withstand high pressure, and have a long service life.
ปั๊มไดอะแฟรม (AODD Pump) CHEMPRO รุ่น DP-Aluminum ตัวปั๊มผลิตจากวัสดุพลาสติก ประเภท AL มีจุดเด่นในเรื่องของทนทานการกัดกร่อนจากสารเคมีได้ดี ไดอะแฟรมปั๊ม มีการทำงานแบบดูด-อัด ออกแบบมาอย่างดีเยี่ยม มีความต้านทานต่อการกัดกร่อน ทนต่อแรงดัน ได้ดีและมีอายุการใช้งานยาวนาน ติดตั้งในพื้นที่ที่มีประกายไฟได้ (Explosion Proof) เนื่องจากใช้ลมในการขับเคลื่อน มีอุปกรณ์ภายในน้อย สะดวกในการดูแลรักษา หรือซ่อมบำรุง ราคาไม่แพง สามารถติดตั้งได้หลายรูปแบบ มีความยืดหยุ่นในการติดตั้ง ทำให้มีการใช้งานอย่างแพร่หลายในอุตสาหกรรมต่างๆ
The CHEMPRO DP-Aluminum model of AODD Pump is made of plastic material, specifically AL (Aluminum). It is known for its excellent resistance to chemical corrosion. The AODD pump operates on the principle of suction and compression and is designed to be excellent, resistant to corrosion, withstand high pressure, and have a long service life. It can be installed in areas with potential fire hazards (Explosion Proof) since it uses air for operation. It has minimal internal components, making it easy to maintain and repair, and it is cost-effective. It can be installed in various configurations, providing flexibility in installation. As a result, it is widely used in various industries.
Technical Parameter | Material Quality | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | Suction lift [mwc] |
Max particle diameter[mm] |
Suction and discharge Size [in] |
AIR inlet size [in] |
Max frow [I/min] |
Maxhead [m] |
Max air inlet pressure [bar] |
Pump body |
Diaphragm | Valve ball |
Valve seat |
Center Block |
|
dry | wet | ||||||||||||
DP15 | 4 | 7.6 | 2.5 | 1/2, 3/4 | 3/8 | 57 | 84 | 8.47 | Aluminum | Santoprene, Hytrel,teflon, Viton,EPDM,Buna-N | Teflon, Stainlees steel, Santoprene |
SS304, SS316 | PP |
DP25 | 4 | 8 | 1.6 | 1" | 1/2 | 157 | 84 | 8.4 | Aluminum, cast iron | Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Santoprene, Hytrel, teflon, Viton, Stainless steel, Ceramic |
Santoprene, Hytrel teflon, Viton, Stainless steel | PP, Aluminum, Stainless steel |
DP40 | 5 | 8 | 5 | 1-1/2" | 1/2 | 358 | 84 | 8.4 | Aluminum, cast iron | Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Santoprene, Hytrel, teflon, Viton, Stainless steel, Ceramic | Santoprene, Hytrel teflon, Viton, Stainless steel | PP, Aluminum, Stainless steel |
DP50 | 5 | 8 | 5 | 2" | 1/2 | 587 | 84 | 8.4 | Aluminum, cast iron | Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Santoprene, Hytrel, teflon, Viton, Stainless steel, Ceramic | Santoprene, Hytrel teflon, Viton, Stainless steel | PP, Aluminum, Stainless steel |
DP80 | 5 | 8 | 9.4 | 3" | 3/4 | 1060 | 84 | 8.4 | Aluminum | Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Santoprene, Hytrel, teflon, Viton, Stainless steel, Ceramic | Santoprene, Hytrel teflon, Viton, Stainless steel | PP, Aluminum, Stainless steel |
