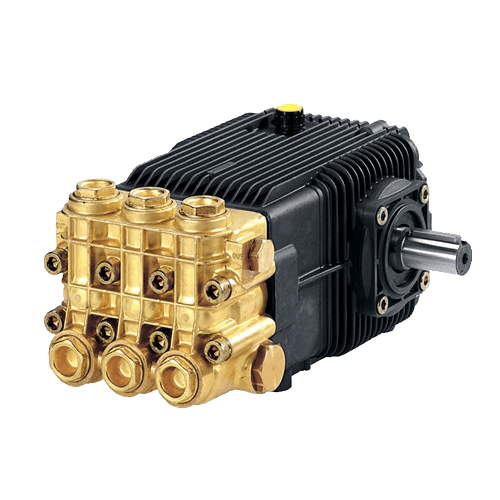

High Pressure Pump ANNOVI XW Series

เครื่องฉีดน้ำแรงดันสูง ANNOVI รุ่น XW Series สินค้าผลิตและนำเข้าจากประเทศอิตาลี ปั๊มแรงดันสูงชนิดทนงานหนัก เหมาะสำหรับใช้ในงานอุตสาหกรรมที่ต้องการความต่อเนื่อง ในการใช้งาน มีให้เลือกใช้งานทั้งหมด 4 รุ่น ได้แก่ XW 21.28 N , XW 30.20 N,  XWL 42.15 N และรุุ่น XWL 50.15 N ขนาดแรงดันสูงสุดตั้งแต่ 150-280 บาร์ ที่ปริมาณน้ำสูงตั้งแต่ 21-50 ลิตรต่อนาที

High Pressure Pump ANNOVI XW Series is High Pressure Pump ANNOVI XW Series is products are manufactured and imported from Italy. They are high-pressure pumps designed for heavy-duty applications, suitable for use in industries that require continuous operation. There are four models available: XW 21.28 N, XW 30.20 N, XWL 42.15 N, and XWL 50.15 N. These pumps have a maximum pressure ranging from 150 to 280 bar and a high water flow rate ranging from 21 to 50 liters per minute.

เครื่องฉีดน้ำแรงดันสูง ANNOVI รุ่น XW Series

ปั๊มน้ำแรงดันสูง หรือ เครื่องฉีดน้ำ ยี่ห้อANNOVI รุ่น XW |194 Series เป็นเครื่องอัดฉีด ชนิดแบบ 3 ลูกสูบสำหรับการทำความสะอาดในหลากหลายอุตสาหกรรม สามารถประกอบเข้ากับมอเตอร์ประเภทต่างๆ โดยตรงหรือใช้ข้อต่อ ตัวปั๊มและฝาครอบผลิตจากอลูมิเนียมอัลลอย ฝาหลังด้านหลังมีช่องระบายน้ำมัน ปั๊มระบบลูกสูบขับเคลื่อนด้วยกลไกแกนเชื่อมต่อข้อเหวี่ยง เพลาปั๊มทำจากเหล็กที่มีความแข็งแรงสูง แบริ่งแรงเสียดทานขนาดใหญ่ การเชื่อมต่อกับแท่งในโลหะผสมอลูมิเนียมสังกะสีแรงเสียดทานต่ำพิเศษ ลูกสูบเซรามิกชิ้นเดียว หัวปั๊มทำจากทองเหลือง ระบบซีลปะเก็นสองชั้น วาล์วไอดีและวาล์วนำส่งมีปลั๊กเพื่อการบำรุงรักษาที่ง่ายขึ้น

High Pressure Pump ANNOVI XW Series

High Pressure Pump ANNOVI XW Series Pistons driven by crank-connecting rod mechanism. Pumps shaft in pressed high – strength steel. Oversized friction bearings. Connecting rods in die-cast special low-friction zinc-aluminium alloy. One-piece ceramic pistons. Pumps head in pressed brass. On request nichel – plated brass pump head. Double gasket sealing system. Intake and delivery valves have plugs for easier maintenance.

การใช้งาน

  • ใช้ทำความสะอาดสิ่งสกกระปก คราบเปรอะเปื้อน
  • ใช้ขจัดคราบสารเคมี
  • ใช้ขจัดคราบหมึก
  • ใช้ขจัดคราบเหนียว
  • ทำความสะอาดพื้นที่ หรือเครื่องจักร ในอุตสาหกรรมอาหาร
  • ทำความสะอาดพื้นที่ หรือเครื่องจักร ในอุตสาหกรรมสารเคมี

Application

  • Used for cleaning dirt and stains.
  • Used for removing chemical residues.
  • Used for removing ink stains.
  • Used for removing adhesive residues.
  • Used for cleaning surfaces or machinery in the food industry.
  • Used for cleaning surfaces or machinery in the chemical industry.

SPECIFICATION

Pump Code. Output Pressure Power RPM Weight
l/min gpm bar psi hp kw Kg
XW 21.28 N 21136 21 5.55 280 4060 15 11 1450 16
