LMI Motor-Driven Metering Pumps Series G ถูกออกแบบมาสำหรับงานที่ต้องการปริมาณการสูง สารเคมีในการบำบัดน้ำ สารเพิ่มประสิทธิภาพกระบวนการ กรด ของเหลวที่มีการปลดปล่อยก๊าซ สาร และอื่น ๆ ทั้งหมดจะสามารถจัดการได้อย่างง่ายดายด้วยการออกแบบปั๊มไดอะแฟรมที่แข็งแกร่ง ช่วงเวลาในการหมุนของแกนส่วนขับเคลื่อนจะเปลี่ยนแปลงได้ตามต้องการ ซึ่งจะช่วยให้การจ่ายสารเป็นไปอย่างนุ่มนวลและลดแรงกระแทกของระบบลง การออกแบบเพื่อกระจายแรงกลับที่เกิดขึ้นจากการดันของปั๊มไดอะแฟรม จะช่วยลดโอกาสในการเกิดสิ่งสกปรกได้

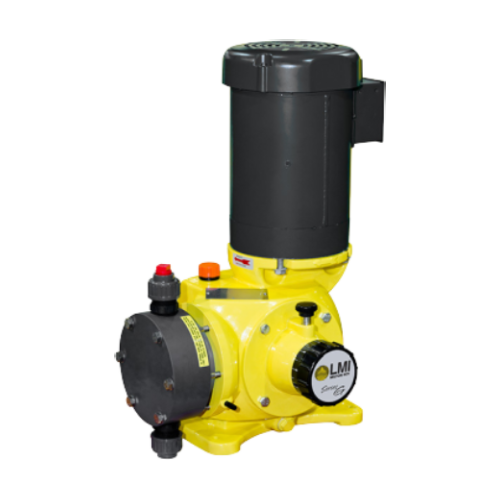

LMI Motor-Driven Metering Pumps Series G is designed for high output applications. Water treatment chemicals, process additives, acids, out-gassing fluids, slurries, and many more applications are all handled with ease by this robust metering pump design. The drive incorporates a variable eccentric design which ensures smooth output and reduces system shock. The mechanically actuated diaphragm reduces the possibility of hydraulic oil contamination of process liquid which makes this an ideal pump for water treatment applications. DC variable speed drives are available for external control and automation.
Output Codes with standard liquid end | |
---|---|
Max Capacity: | Max Pressure: |
SD2 – 0.7 GPH (2.6 l/h) | 175 psi (12 Bar) |
SD4 – 12 GPH (45 l/h) | 150 psi (10.3 Bar) |
SD7 – 50 GPH (189 l/h) | 100 psi (6.9 Bar) |
SD8 – 115 GPH (435 l/h) | 75 psi (5 Bar) |
SG5 – 106 GPH (400 l/h) | 150 psi (10.3 Bar) |
SG6 – 147 GPH (556 l/h) | 100 psi (6.9 Bar) |
SG7 – 300 GPH (1136 l/h) | 50 psi (3.4 Bar) |
