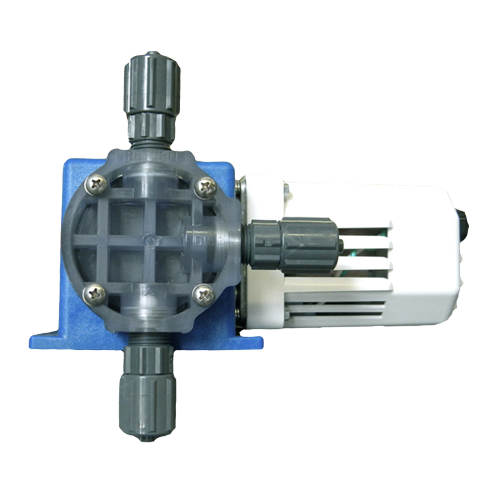

PULSA FEEDER Chem-Tech Series Prime Performance

ปั๊ม PULSA FEEDER Chem-Tech Series Prime Performance มีระบบวาล์วไล่ก๊าซที่ออกแบบมาเป็นพิเศษสำหรับการใช้งานโดยใช้สารเคมีที่ปล่อยก๊าซออก อายุการใช้งานยาวนานขึ้น และการสูบจ่ายที่สม่ำเสมอตลอดระยะเวลานานในรูปแบบกะทัดรัด

The PULSA FEEDER Chem-Tech Series Prime Performance pump features a specially designed gas purging valve system for applications involving the release of gases from chemicals. It offers extended durability, ensuring a longer lifespan, and provides consistent and reliable pumping throughout extended periods in a compact design.

ปั๊มจ่ายสารเคมี PULSA FEEDER Chem-Tech Series Prime Performance

ปั๊ม PULSA FEEDER Chem-Tech Series Prime Performance มีระบบวาล์วไล่ก๊าซที่ออกแบบมาเป็นพิเศษสำหรับการใช้งานโดยใช้สารเคมีที่ปล่อยก๊าซออก เช่น โซเดียมไฮโปคลอไรท์ สร้างขึ้นจากเทคโนโลยีไดอะแฟรมแบบใช้มอเตอร์ PRIME PERFORMANCE Series ให้ประสิทธิภาพที่เชื่อถือได้ อายุการใช้งานยาวนานขึ้น และการสูบจ่ายที่สม่ำเสมอตลอดระยะเวลานานในรูปแบบกะทัดรัด รุ่น PP100 – เหมาะสำหรับงานปิดแก๊สที่ต้องการประสิทธิภาพที่ประหยัดและสม่ำเสมอ สามารถไหลได้หลากหลายตั้งแต่น้อยกว่า 15 gpd (2.34 lph) ถึง 30 gpd (4.72 lph) และแรงดันสูงสุด 100 psi (7 bar) รุ่น PP150 – สร้างขึ้นบนแพลตฟอร์มที่มั่นคงเช่นเดียวกับรุ่น 100 หน่วยเหล่านี้มีอัตราการไหลที่สูงขึ้น ด้วยช่วงที่มีสูงถึง 100 gpd (15.76 lph) Series 150 จึงสามารถตอบสนองความต้องการของแอพพลิเคชั่นขนาดใหญ่ได้ แรงดันสูงสุด 60 psi (4.2 bar)

PULSA FEEDER Chem-Tech Series Prime Performance

PULSA FEEDER Chem-Tech Series Prime Performance a specially designed degassing valve system for applications using off-gassing chemicals like sodium hypochlorite. Built upon motorized-diaphragm technology, the PRIME PERFORMANCE Series delivers dependable performance, extended longevity and consistent metering over long periods of time in a compact form. PP100 Models – Perfect for off-gassing applications where economical, consistent performance is required. Capable of a wide range of flows, from less than 15 gpd (2.34 lph) up to 30 gpd (4.72 lph) and pressures up to 100 psi (7 bar). PP150 Models – Built upon the same solid platform as the 100 Models, these units are capable of higher flow rates. With a range offering up to 100 gpd (15.76 lph), the Series 150 can meet the demands of larger applications. Maximum pressure is 60 psi (4.2 bar).

หัวปั๊มไล่แก๊ส

  • ระบบเช็ควาล์วสี่เหลี่ยมแบบมีไกด์
  • การควบคุมอัตราการป้อน

Degassing pump head

  • Guided quad check valve system
  • Feed rate control

SPECIFICATION

Pump Head Materials PVC
Fitting Material Available PVC
Seat O-Rings Available CSPE, Viton
Balls Available Ceramic
Diaphragms PTFE-faced CSPE-backed
Tubing Available Clear PVC, White PE, Black PE
Power Input 115 VAC - 60 HZ, 230 VAC - 50 HZ, 230 VAC - 60 HZ
Product Options
  • Duplex Head
  • Current Interrupter
  • 15 or 35 Gallon Tank with Bulkhead
Accessories KOP Kits Gauges Dampeners Pressure Relief Valves Tanks Pre-Engineered Feed Systems Process Controllers
