SANSO PMD Magnet Type For Hot And Cold Water Series

ปั๊มเคมี (chemical pump) SANSO PMDS ปั๊มสูบถ่ายสารเคมีและน้ำทะเล เหมาะสำหรับงานหมุนเวียนน้ำในระบบเครื่องทำความร้อนและเครื่องทำความเย็น สามารถรองรับอุณหภูมิได้ตั้งแต่ -20 ถึง 90 องศา มีจำหน่ายทั้งหมด 2 รุ่น คือ PMD-711B และ PMD-141B

Magnetic drive pump SANSO PMD Magnet Type For Hot And Cold Water Series​ This model is suitable for both hot and cold water circulation in heating and cooling systems. It can withstand temperatures ranging from -20 to 90 degrees Celsius. There are two available models: PMD-711B and PMD-141B.

ปั๊มน้ำยาเคมี Sanso PMD Magnet pump series High power สำหรับเคมีและน้ำทะเล

ปั๊มเคมี Sanso PMD Magnet Type สำหรับน้ำร้อนและน้ำเย็น ( for hot and cold water) รุ่นสำหรับใช้ได้กับน้ำร้อนและน้ำเย็น เหมาะสำหรับงานหมุนเวียนน้ำในระบบเครื่องทำความร้อนและเครื่องทำความเย็น สามารถรองรับอุณหภูมิได้ตั้งแต่ -20 ถึง 90 องศา มีจำหน่ายทั้งหมด 2 รุ่น คือ PMD-711B และ PMD-141B

Magnetic drive pump SANSO PMD Magnet Type For Hot And Cold Water Series

Sanso PMD Magnet Type chemical solution pump for hot and cold water. This model is suitable for both hot and cold water circulation in heating and cooling systems. It can withstand temperatures ranging from -20 to 90 degrees Celsius. There are two available models: PMD-711B and PMD-141B.

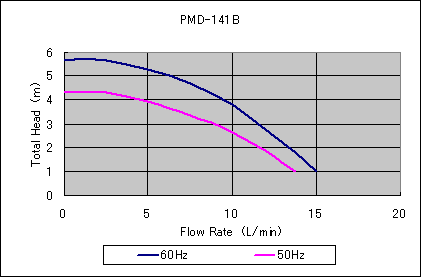

Performance Curve

SPECIFICATION

Model Voltage Frequency Poles Rated Output Diameter Flow Rate Total Head Weight
V Hz W A (mm) L/min m kg
PMD-711B 100 50/60 2 poles 60/75 19 8.9/11 15/15 2.7
PMD-141B 100 50/60 2 poles Oct-15 14 10-Nov 3/4 ・5/6 1.7

Note :

  1. ความถี่ 50 Hz และ 60 Hz
  2. อุณหภูมิของเหลว -20°C – 90°C สารละลายทำให้อายุการใช้งานของปั๊มเสียหาย
  3. ใช้ภายในอาคาร
  4. แรงดันปั๊ม น้อยกว่า 100kPa
Note :
  1. For 50 Hz and 60Hz
  2. Temperature of liquid -20°C to 90°C Slurry damages the life of pump
  3. Installation site: For indoor use
  4. Boost pressure: Less than 100kPa

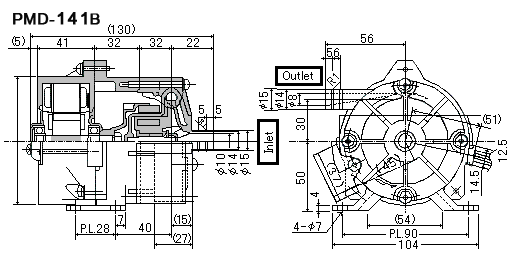

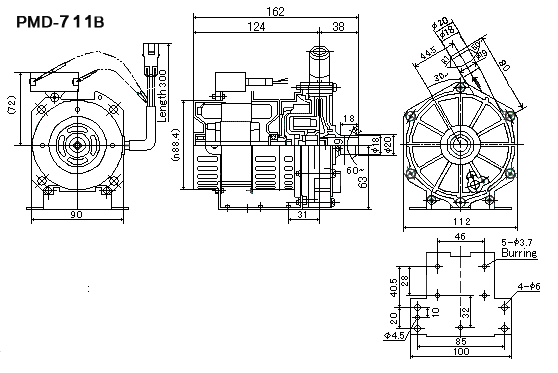

Dimensions
