ปั๊มลม (เครื่องอัดลม) JUN-AIR 3 Series มีมอเตอร์ตั้งแต่ 350W-2000W ขนาดความจุของถังมีความแตกต่างกันโดยมีตั้งแต่ 4 ลิตร-150 ลิตรโดยออกแบบถังให้มีขนาดใหญ่ เพื่อรองรับลมที่มากขึ้น ตัวปั๊มภายในมีการเคลือบเพื่อต้านทานการกัดกร่อน โดยรุ่นนี้ตัวเลขแรกแสดงถึงขนาดมอเตอร์ และตัวที่สองแสดงถึงขนาดถังคือลิตร

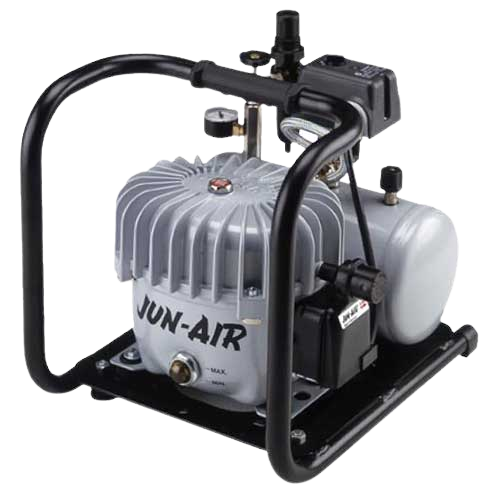

Air Compressor JUN-AIR 3 Series motors range from 350W to 2000W, and the tank sizes vary from 4 liters to 150 liters. The tanks are designed to be larger to accommodate higher airflow. The internal components of the pump are coated to resist corrosion. In this model, the first number indicates the motor size, and the second number indicates the tank size in liters.
Air Compressor JUN-AIR 3 Series is an imported product from America. It is an oil-lubricated air compressor. There are two models to choose from: 3-4 and 3 motor. The voltage options range from 100 to 230 V, with motor power sizes of 0.18 horsepower (HP) and 0.20 horsepower (HP). The air compressor is internally coated to resist corrosion and operates quietly at only 35 dB. It is suitable for use in laboratories and industrial applications.
Model | JUN-AIR 3 motor (Oil-Lubricated) | JUN-AIR 3-4 (Oil-Lubricated) | |||||
---|---|---|---|---|---|---|---|
Voltage | V | 100 | 200 | 230 | 100 | 200 | 230 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 | 50 |
Motor | HP | 0.2 | 0.18 | 0.18 | 0.2 | 0.18 | 0.18 |
kW | 0.15 | 0.13 | 0.13 | 0.15 | 0.13 | 0.13 | |
Displacement | l/min | 17 | 17 | 17 | 17 | 17 | 17 |
CFM | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
FAD @ 8 bar | l/min | 11 | 11 | 11 | 11 | 11 | 11 |
CFM | 0.39 | 0.39 | 0.39 | 0.39 | 0.39 | 0.39 | |
Max. pressure 1) | bar | 8 | 8 | 8 | 8 | 8 | 8 |
psi | 120 | 120 | 120 | 120 | 120 | 120 | |
Max. current | A | 2.8 | 0.9 | 0.9 | 2.8 | 0.9 | 0.9 |
Tank size | litres | – | – | – | 4 | 4 | 4 |
gallon | – | – | – | 1.1 | 1.1 | 1.1 | |
Weight | kg | 9 | 9 | 9 | 18 | 18 | 18 |
lbs | 20 | 20 | 20 | 40 | 40 | 40 | |
Noise level | dB (A)/lm | 35 | 35 | 35 | 35 | 35 | 35 |
Thermal protection | Yes | Yes | Yes | Yes | Yes | Yes | |
Duty cycle | 50% | 50% | 50% | 50% | 50% | 50% | |
W x L x H | mm | 190 x 290 x210 | 382 x 300 x 334 |
