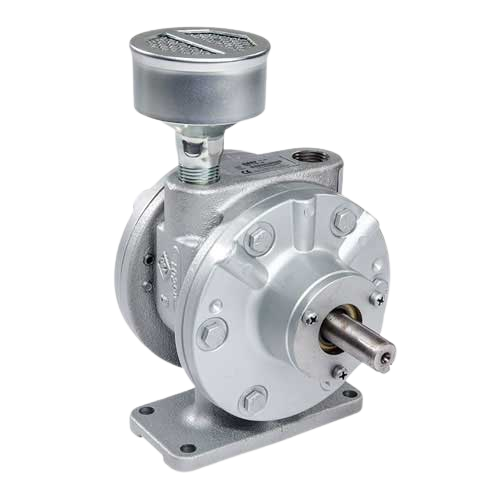

มอเตอร์ลม Gast รุ่น 6AM Series มอเตอร์ลม GAST รุ่น 6AM Series ขนาดเล็ก ติดตั้งง่าย และเคลื่อนย้ายสะดวก หมุนได้ 2 ทาง สามารถปรับความเร็วรอบได้ตามความต้องการ ควบคุมความดัน และปริมาณอากาศได้ มากกว่ามอเตอร์ไฟฟ้า นอกจากนี้มอเตอร์ลม Gast เหมาะสำหรับการใช้งานในสถานที่ที่มีอุณหภูมิสูง เพื่อป้องกันการระเบิดได้อีกด้วย
Air Motor GAST Model 6AM Series a small-sized is easy to install and convenient to move. It can rotate in two directions and allows for adjustable rotational speed according to the requirements. It has the ability to control pressure and air volume, surpassing electric motors in this aspect. Moreover, GAST air motors are suitable for use in high-temperature environments to prevent explosions.

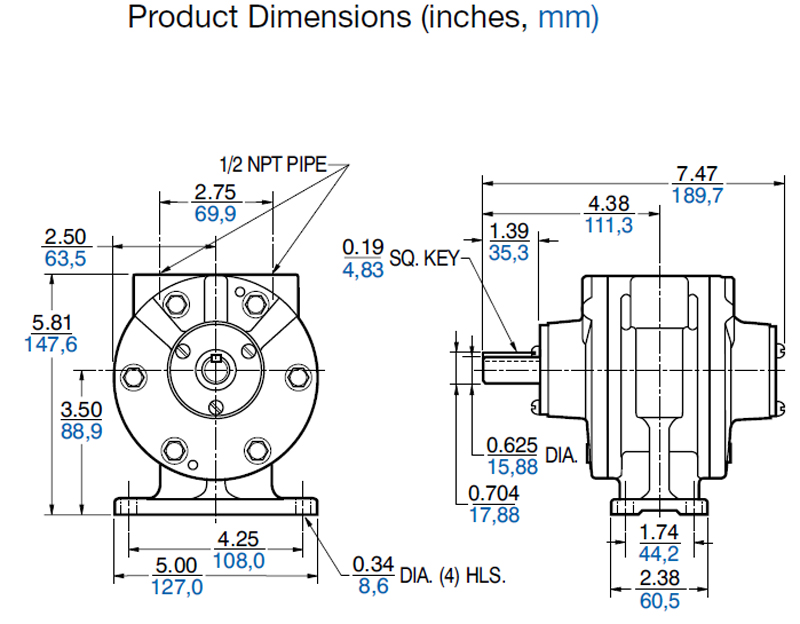

MODEL | GAST 6AM-FRV-5A | GAST 6AM-FRV-23A | GAST 6AM-NRV-11A | GAST 6AM-NRV-22A | |
---|---|---|---|---|---|
Mount | Foot Mounting | Foot Mounting | NEMA 56C mounting | NEMA 56C mounting | |
Rotation | REVERSIBLE | REVERSIBLE | REVERSIBLE | REVERSIBLE | |
Fitting | in | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT |
Vane | 4 | 8 | 4 | 8 | |
Motor | HP | 4 | 4 | 4 | 4 |
Max Torque | Nm | 13 | 13 | 13 | 13 |
Max Speed | RPM | 3,000 | 3,000 | 3,000 | 3,000 |
WxLxH | mm | 127x190x148 | 127x190x148 | 166x211x116 | 166x211x116 |

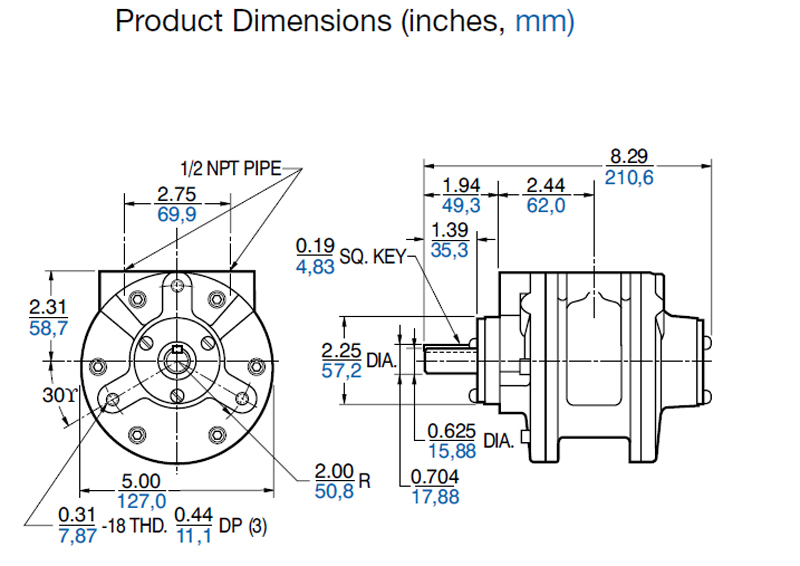

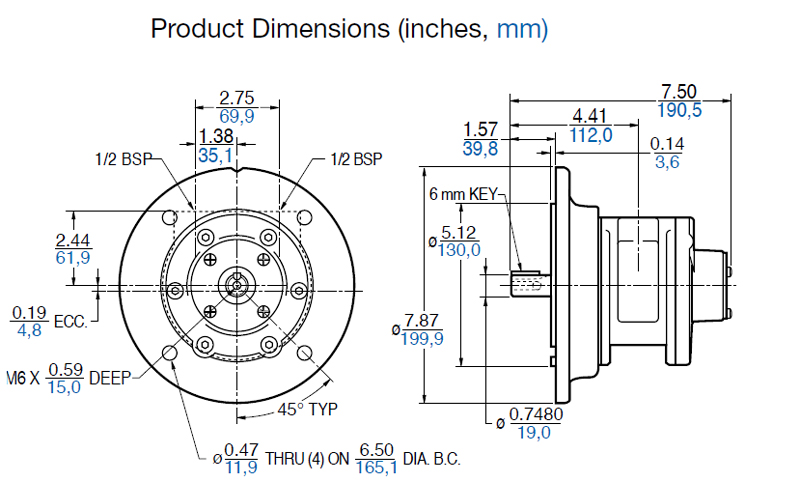

MODEL | GAST 6AM-ARV-54 | GAST 6AM-ARV-55 | GAST 6AM-NRV-7A | |
---|---|---|---|---|
Mount | IEC 72 Flange | IEC 72 Flange | Face mounting | |
Rotation | REVERSIBLE | REVERSIBLE | REVERSIBLE | |
Fitting | in | 1/2 BSP | 1/2 BSP | 1/2 NPT |
Vane | 4 | 8 | 4 | |
Motor | HP | 4 | 4 | 4 |
Max Torque | Nm | 13 | 13 | 13 |
Max Speed | RPM | 3,000 | 3,000 | 3,000 |
WxLxH | mm | 200x191x200 | 200x191x200 | 127x211x127 |
