มอเตอร์ลมใส่เกียร์ทด GAST รุ่น 1AM-NRV(GM) Series สินค้านำเข้าจากอเมริกา ขนาดเล็ก กะทัดรัด เคลื่อนย้ายและติดตั้งสะดวก สามารถปรับความเร็วรอบได้ความต้องการ โดยสามารถทดรอบได้ถึง 15:1 ทำให้ลดความเร็วรอบลง แต่เพิ่มแรงบิดให้สูงขึ้น นอกจากนี้ยังไม่ทำให้เกิดประกายไฟ สามารถทำงานในพื้นที่ไวไฟ ได้ มีใบพัดให้เลือก 2 แบบคือ 4 ใบพัด และ 8 ใบพัด โดยการทำงานทิศทางการหมุนของใบพัดมีตั้งแต่ ทวนเข็มนาฬิกา , ตามเข็มนาฬิกา และ หมุนสองทิศทาง เป็นต้น

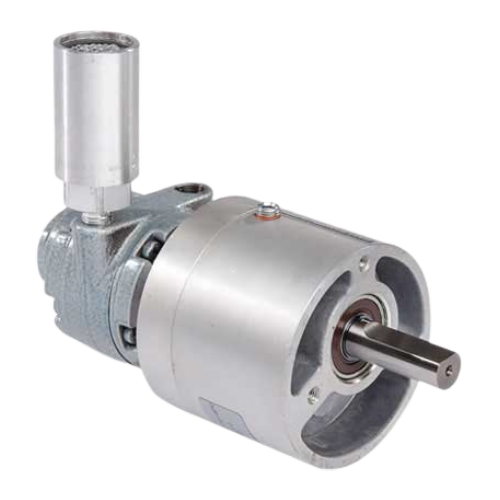

Air-Powered Gear Motors GAST 1AM imported product from America is small-sized, compact, and easy to move and install. It allows for adjustable speed according to the requirements and can provide a gear ratio of up to 15:1, allowing for a reduction in rotational speed while increasing torque. Additionally, it does not generate sparks and can operate in areas with Wi-Fi signals. There are two options for the fan blades: 4 blades and 8 blades. The fan blades can rotate clockwise, counterclockwise, and in both directions.
มอเตอร์ลมใส่เกียร์ทด รุ่น 1AM-NRV(GM) series ขนาดเล็ก ติดตั้งง่าย และเคลื่อนย้ายสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ โดยตัวมอเตอร์เกียร์สามารถทดรอบเกียร์ได้ถึง 15:1 ซึ่งเหมาะสำหรับงานที่ต้องการลดรอบความเร็ว แต่เพิ่มแรงบิดให้สูงขึ้น เพื่อป้องกันมอเตอร์ไม่ให้เกิดความเสียหาย ซึ่งมอเตอร์ลมเป็นอุปกรณ์ไม่ใช้ไฟฟ้า ทำให้มอเตอร์ลม GASTสามารถใช้กับงานในสถานทีที่อุณหภูมิสูงและอันดรายในพื้นที่ไวไฟได้อีกด้วย
Air-Powered Gear Motors GAST 1AM-NRV(GM) Series is small-sized easy to install and convenient to move. It allows for adjustable speed according to the requirements. The motor gear can provide a gear ratio of up to 15:1, which is suitable for applications that require a reduction in speed while increasing torque to prevent motor damage. The air motor is a non-electric device, allowing the GAST air motor to be used in high-temperature environments and areas with
MODEL | GAST 1AM-NRV-56-GR11 (15:1) | GAST 1AM-NRV-60-GR11 (15:1) | |
---|---|---|---|
Mount | Face mounting | Face mounting | |
Rotation | REVERSIBLE | REVERSIBLE | |
Vane | 4 | 8 | |
Fitting | in | 1/8NPT | 1/8NPT |
Motor | HP | 0.35 | 0.35 |
Max Speed | RPM | 350 | 350 |
Torque@Max Speed | Nm | 7.1 | 7.1 |
Speed@Max Torque | RPM | 30 | 30 |
Max Torque | Nm | 8 | 8 |
WxLxH | mm | 75x175x75 | 75x175x75 |
