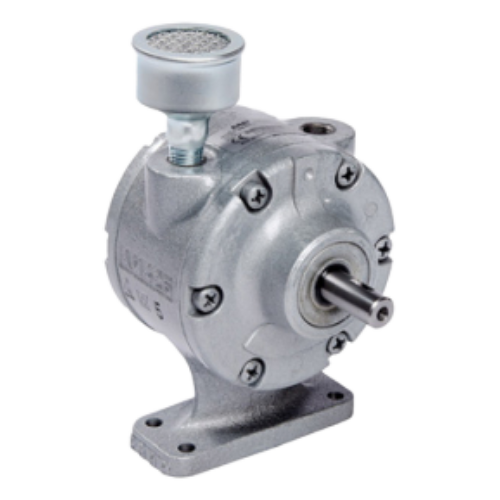

มอเตอร์ลม Gast รุ่น 4AM Series มีขนาดเล็ก ติดตั้งง่าย และเคลื่อนย้ายสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ ควบคุมความดัน และปริมาณอากาศได้ มากกว่ามอเตอร์ไฟฟ้า นอกจากนี้มอเตอร์ลม Gast เหมาะสำหรับการใช้งานในสถานที่ที่มีอุณหภูมิสูง เพื่อป้องกันการระเบิดได้อีกด้วย
Air Motor GAST Model 4AM Series is a small air motor that is easy to install and convenient to move. It allows for adjustable rotational speed according to the desired requirements and provides control over pressure and airflow, surpassing electric motors. Additionally, GAST air motors are suitable for use in high-temperature environments to prevent explosions.
Air Motor GAST Model 4AM Series is imported from America and is small in size, allowing for easy handling and installation. It provides convenient movement and installation. It offers adjustable rotational speed according to specific requirements. Additionally, it is spark-free, ensuring safety during operation. It can be used in areas with flammable substances and is capable of operating in Wi-Fi environments. There are two options for the fan blades: 4 blades and 8 blades. The fan blades can rotate in both clockwise and counterclockwise directions, including dual-shaft configurations. This product is suitable for industries such as paint mixing, conveyor belts, food packaging, pharmaceutical packaging, and winches and cranes.

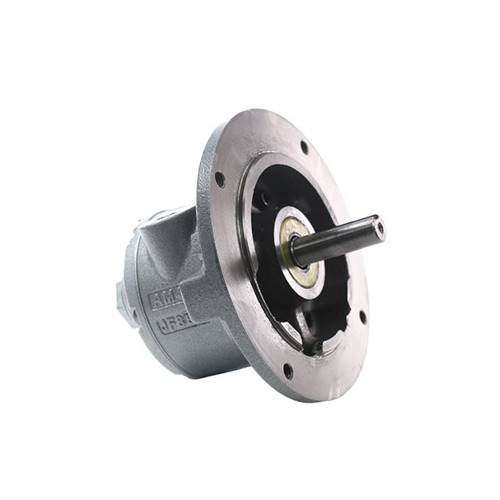

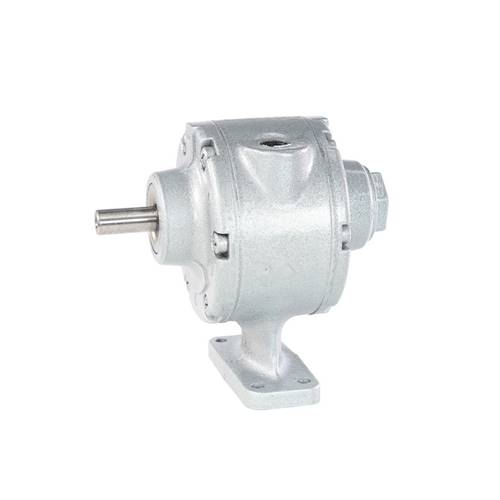

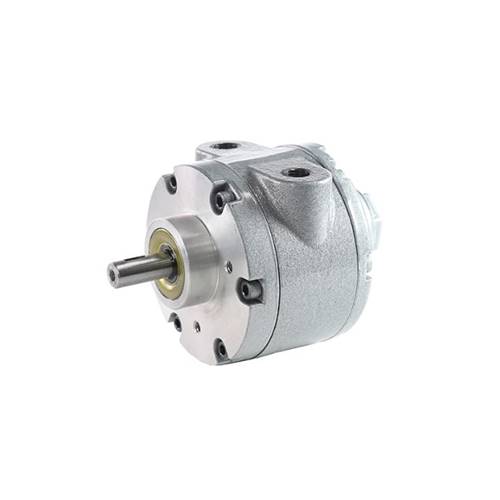

MODEL | GAST 4AM-NRV-22B | GAST 4AM-NRV-54A | GAST 4AM-NRV-50C | GAST 4AM-NRV-70C | GAST 4AM-ARV-120 | GAST 4AM-ARV-119 | GAST 4AM-FRV-13H | GAST 4AM-FRV-63A | |
---|---|---|---|---|---|---|---|---|---|

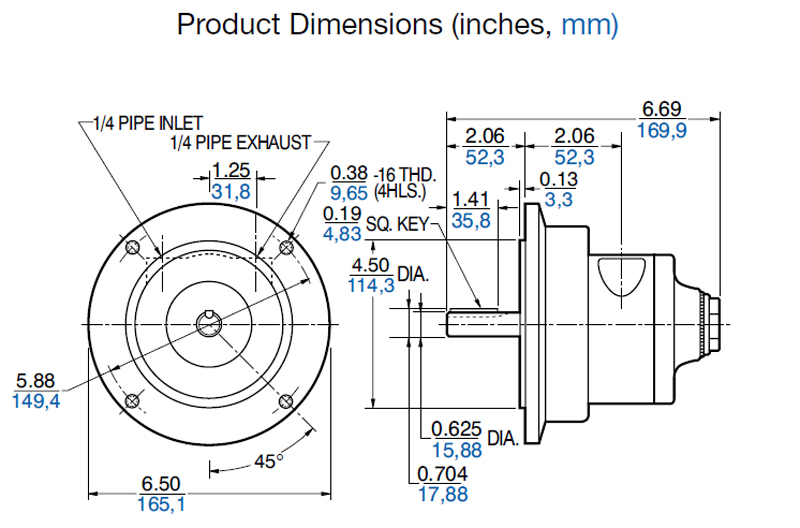

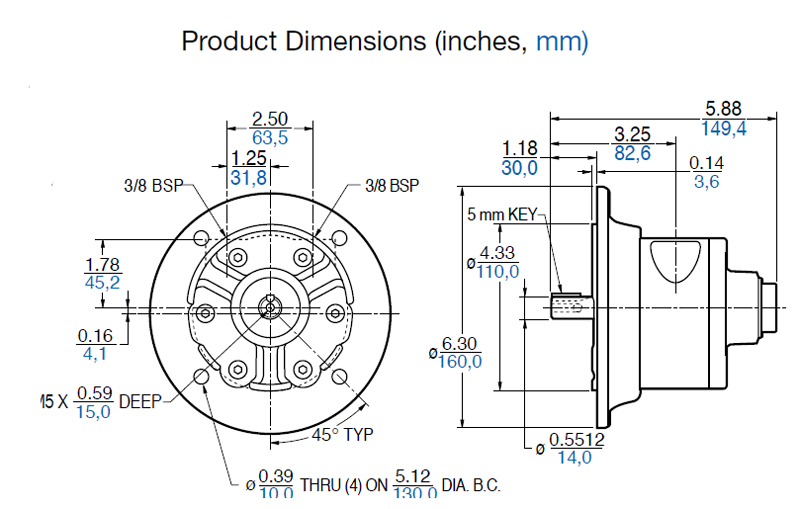

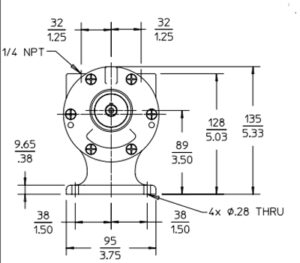

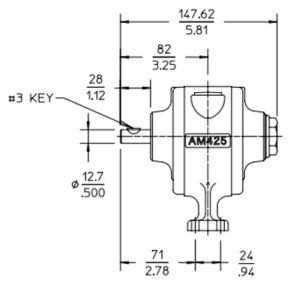

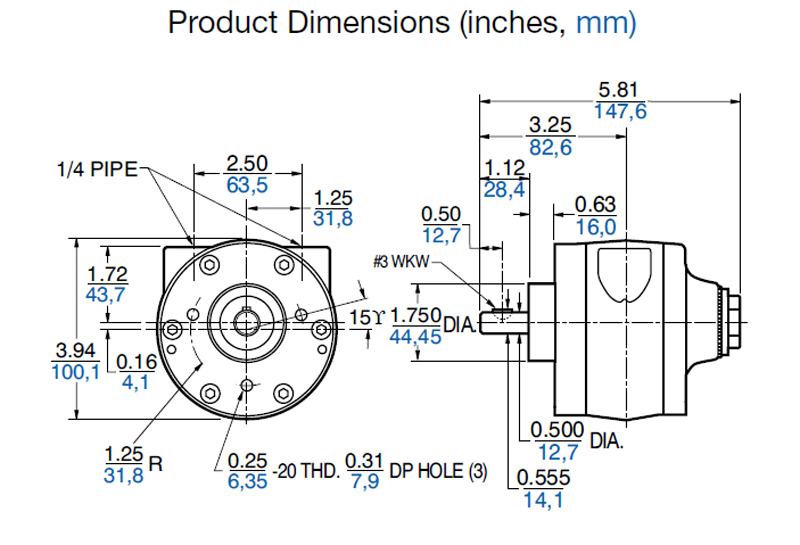

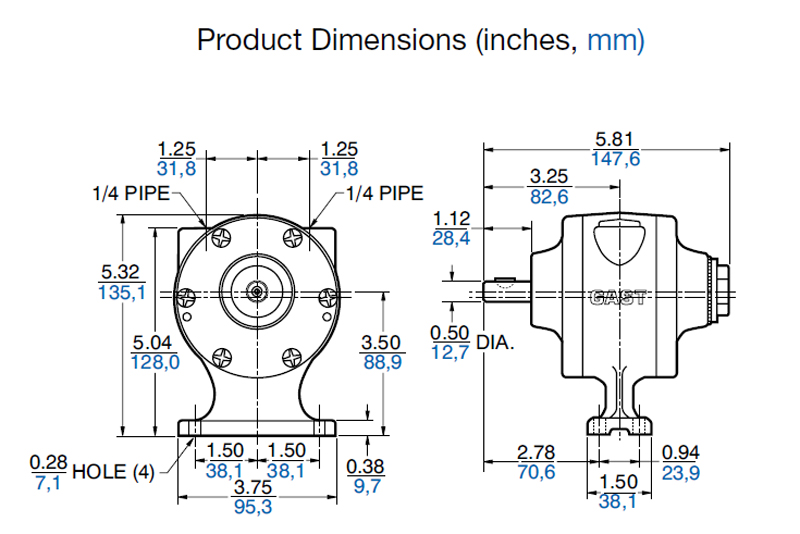

Mount | Face mounting | Face mounting | NEMA 56C mounting | NEMA 56C mounting | IEC72 Flange | IEC72 Flange | Foot Mounting | Foot Mounting | |
Rotation | REVERSIBLE | REVERSIBLE | REVERSIBLE | REVERSIBLE | REVERSIBLE | REVERSIBLE | REVERSIBLE | REVERSIBLE | |
Fitting | in | 1/4 NPT | 1/4 NPT | 1/4 NPT | 1/4 NPT | 1/4 BSP | 1/4 BSP | 1/4 NPT | 1/4 NPT |
Vane | 4 | 8 | 4 | 8 | 8 | 4 | 4 | 8 | |
Motor | HP | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.47 |

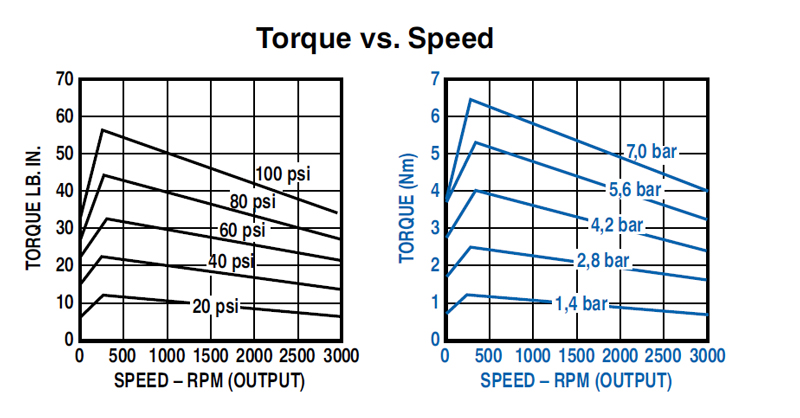

Max Torque | Nm | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Max Speed | RPM | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 |
WxLxH | mm | 100x148x100 | 165x170x165 | 165x170x165 | 165x170x165 | 160x150x160 | 160x150x160 | 96x148x136 | 96x148x138 |
