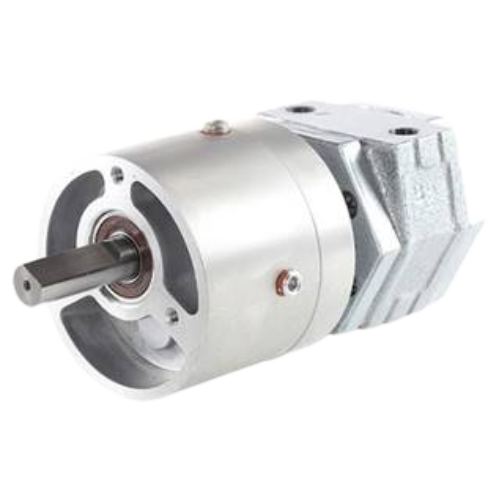

Air-Powered Gear Motors GAST 1UP Series

มอเตอร์ลมใส่เกียร์ทด รุ่น 1UP-NRV(GM) Series สินค้านำเข้าจากอเมริกา ขนาดเล็ก กะทัดรัด เคลื่อนย้ายและติดตั้งสะดวก สามารถปรับความเร็วรอบได้ความต้องการ โดยสามารถทดรอบได้ถึง 15:1 ทำให้ลดความเร็วรอบลง แต่เพิ่มแรงบิดให้สูงขึ้น นอกจากนี้ยังไม่ทำให้เกิดประกายไฟ สามารถทำงานในพื้นที่ไวไฟ ได้ มีใบพัดให้เลือก 2 แบบคือ 4 ใบพัด และ 8 ใบพัด โดยการทำงานทิศทางการหมุนของใบพัดมีตั้งแต่ ทวนเข็มนาฬิกา , ตามเข็มนาฬิกา และ หมุนสองทิศทาง เป็นต้น

Air-Powered Gear Motors GAST 1UP Series imported product from America is small-sized, compact, and easy to move and install. It allows for adjustable speed according to the requirements and can provide a gear ratio of up to 15:1, allowing for a reduction in rotational speed while increasing torque. Additionally, it does not generate sparks and can operate in areas with Wi-Fi signals. There are two options for the fan blades: 4 blades and 8 blades. The fan blades can rotate clockwise, counterclockwise, and in both directions.

มอเตอร์ลมใส่เกียร์ทด GAST รุ่น 1UP Series

มอเตอร์ลมใส่เกียร์ทด รุ่น 1UP-NRV(GM) series ขนาดเล็ก ติดตั้งง่าย และเคลื่อนย้ายสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ โดยตัวมอเตอร์เกียร์สามารถทดรอบเกียร์ได้ถึง 15:1 ซึ่งเหมาะสำหรับงานที่ต้องการลดรอบความเร็ว แต่เพิ่มแรงบิดให้สูงขึ้น เพื่อป้องกันมอเตอร์ไม่ให้เกิดความเสียหายซึ่งมอเตอร์ลมเป็นอุปกรณ์ไม่ใช้ไฟฟ้า ทำให้มอเตอร์ลม GASTสามารถใช้กับงานในสถานที่ที่อุณหภูมิสูงและอันดราย ในพื้นที่ไวไฟได้อีกด้วย

Air-Powered Gear Motors GAST 1UP Series

Air-Powered Gear Motors GAST 1UP Series​ is small-sized easy to install and convenient to move. It allows for adjustable speed according to the requirements. The motor gear can provide a gear ratio of up to 15:1, which is suitable for applications that require a reduction in speed while increasing torque to prevent motor damage. The air motor is a non-electric device, allowing the GAST air motor to be used in high-temperature environments and flammable area.

คุณสมบัติ

  • สามารถทดรอบได้ถึง 15:1
  • ลักษณะมอเตอร์ลมใส่เกียร์ทด เป็นแบบFace mounting
  • การทำงานของเพลาขับเคลื่อนเป็นแนวนอน
  • มาพร้อมกับ Muffler
  • ไม่ก่อให้เกิดประกายไฟ
  • เคลื่อนย้ายและติดตั้งสะดวก

Feature

  • It can provide a gear ratio of up to 15:1.
  • The air motor with gears features a Face mounting installation.
  • The driving shaft operates horizontally.
  • It comes with a Muffler.
  • It does not generate sparks.
  • It is easy to move and install.

SPECIFICATION

MODEL GAST 1UP-NRV-4-GR11(15:1) GAST 1UP-NRV-11-GR11 (15:1)
Mount Face mounting Face mounting
Rotation REVERSIBLE REVERSIBLE
Vane 4 8
Fitting in 1/8NPT 1/8NPT
Motor HP 0.32 0.32
Max Speed RPM 400 400
Torque@Max Speed Nm 5.5 5.5
Speed@Max Torque RPM 30 30
Max Torque Nm 11 11
WxLxH mm 75x186x75 75x186x75
