มอเตอร์ลม Gast รุ่น 8AM Series ขนาดเล็ก ติดตั้งง่าย และเคลื่อนย้ายสะดวก หมุนได้ 2 ทาง สามารถปรับความเร็วรอบได้ตามความต้องการ ควบคุมความดัน และปริมาณอากาศได้ มากกว่ามอเตอร์ไฟฟ้า นอกจากนี้มอเตอร์ลม Gast เหมาะสำหรับการใช้งานในสถานที่ที่มีอุณหภูมิสูง เพื่อป้องกันการระเบิดได้อีกด้วย

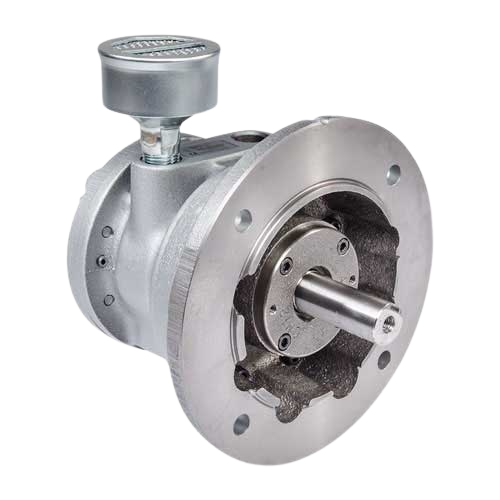

Air Motor GAST Model 8AM Series is easy to install, and convenient to move, this motor can rotate in two directions. It allows for adjustable speed control, pressure control, and air volume control, surpassing electric motors in these aspects. Furthermore, Gast air motors are suitable for use in high-temperature environments, providing an additional layer of protection against explosions.
Air Motor GAST Model 8AM Series is an imported product from America. It is compact, lightweight, and easy to move and install. The rotational speed can be adjusted according to specific requirements. Moreover, it is spark-free and can operate in areas with high fire hazards. It is also suitable for working in flammable areas. The motor is available with two options for fan blades: 4-blade and 8-blade. The fan blades can rotate in different directions, including clockwise, counterclockwise, and bidirectional rotations. This motor is ideal for industries such as paint mixing, conveyor belts, food packaging, pharmaceutical packaging, winches,

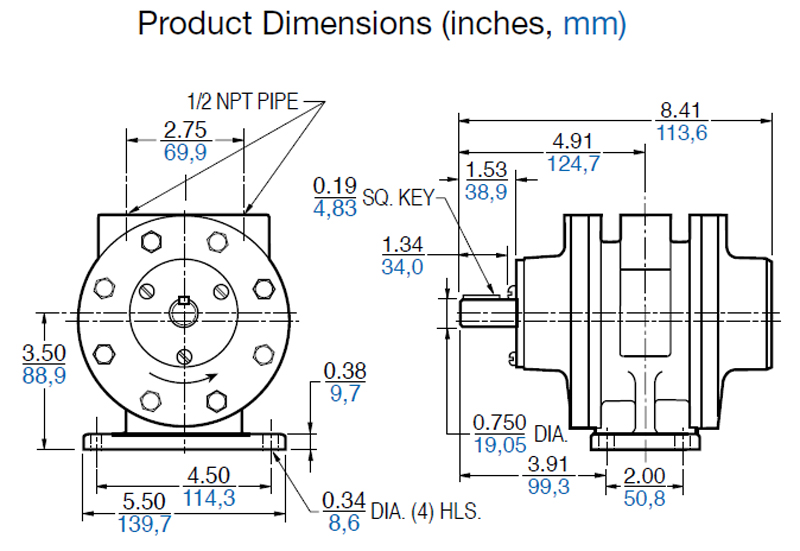

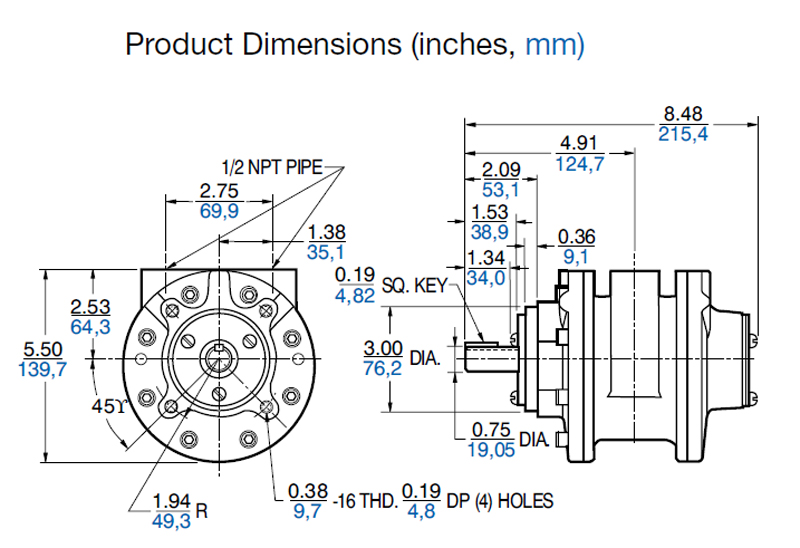

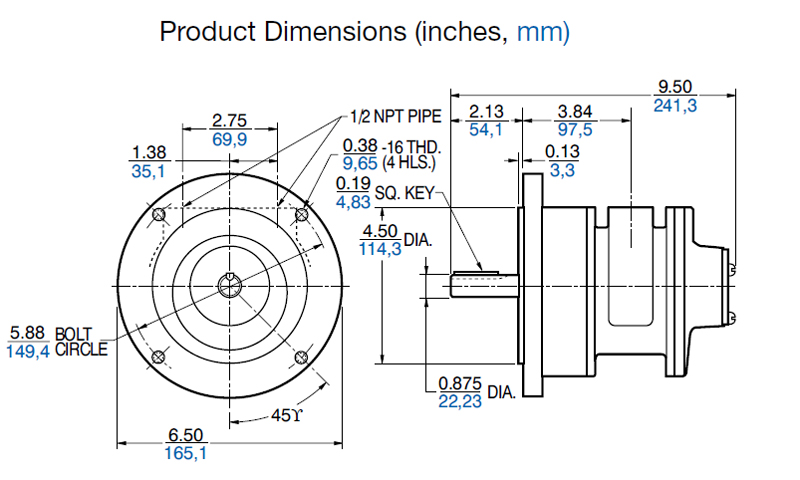

MODEL | GAST 8AM-FRV-2B | GAST 8AM-NRV-28A | GAST 8AM-NRV-5B | |
---|---|---|---|---|
Mount | Foot mounting | NEMA 145TC mounting | Face mounting | |
Rotation | REVERSIBLE | REVERSIBLE | REVERSIBLE | |
Fitting | in | 1/2 NPT | 1/2 NPT | 1/2 NPT |
Vane | 4 | 4 | 4 | |
Motor | HP | 5.2 | 5.2 | 5.2 |
Max Torque | Nm | 22 | 22 | 22 |
Max Speed | RPM | 2,500 | 2,500 | 2,500 |
WxLxH | mm | 140x114x168 | 166x242x165 | 140x216x140 |

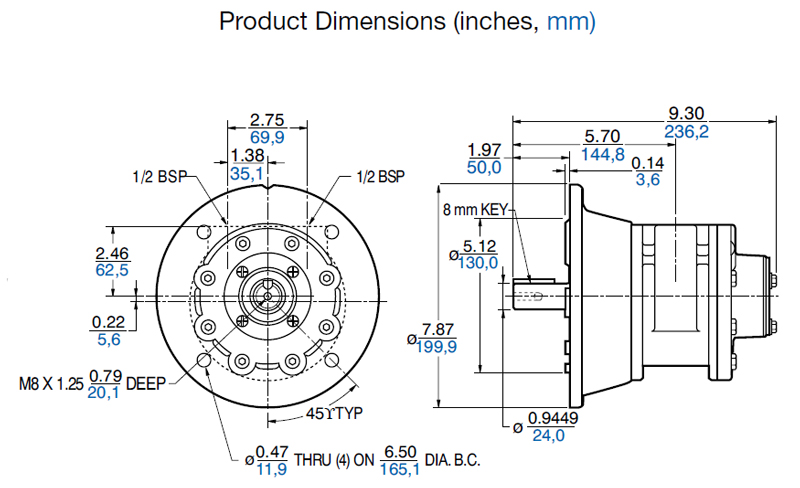

MODEL | GAST 8AM-ARV-70 | GAST 8AM-ARV-71 | GAST 8AM-NRV-32A | |
---|---|---|---|---|
Mount | IEC 72 Flange | IEC 72 Flange | NEMA 145TC mounting | |
Rotation | REVERSIBLE | REVERSIBLE | REVERSIBLE | |
Fitting | in | 1/2 BSP | 1/2 BSP | 1/2 NPT |
Vane | 4 | 8 | 8 | |
Motor | HP | 5.2 | 5.2 | 5.2 |
Max Torque | Nm | 22 | 22 | 22 |
Max Speed | RPM | 2,500 | 2,500 | 2,500 |
WxLxH | mm | 200x237x200 | 200x237x200 | 166x242x166 |
