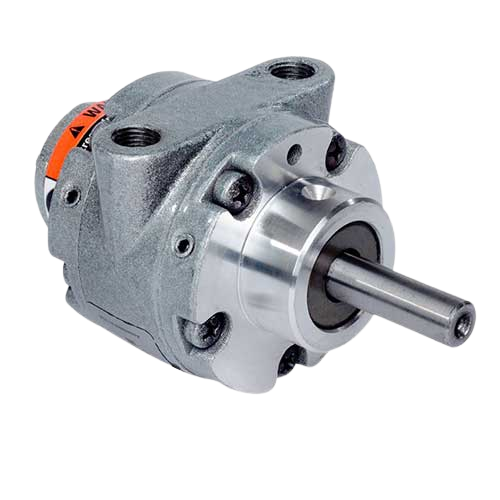

AIR MOTOR GAST Model 1AM Series

มอเตอร์ลม Gast รุ่น 1 AM Series สินค้านำเข้าจากอเมริกา ขนาดเล็ก กะทัดรัด เคลื่อนย้ายและติดตั้งสะดวก สามารถปรับความเร็วรอบได้ความต้องการ นอกจากนี้ยังไม่ทำให้เกิดประกายไฟ สามารถทำงานในพื้นที่ไวไฟ ได้ มีใบพัดให้เลือก 2 แบบคือ 4 ใบพัด และ 8 ใบพัด โดยการทำงานทิศทางการหมุนของใบพัดมีตั้งแต่ ทวนเข็มนาฬิกา , ตามเข็มนาฬิกา และ หมุนสองทิศทาง เป็นต้น เหมาะสำหรับ อุตสาหกรรมกวนสี ผสมสี , สายพานลำเลียง , บรรจุภัณฑ์อาหาร , บรรจุภัณฑ์ยา, รอกและเครน เป็นต้น

AIR MOTOR GAST Model 1AM Series is imported product from America is small-sized, compact, and easy to move and install. It allows for adjustable speed according to the requirements and does not produce sparks. It can work in areas with Wi-Fi signals. There are two options for the fan blades: 4 blades and 8 blades. The fan blades can rotate clockwise, counterclockwise, and in both directions. This product is suitable for industries such as paint mixing, conveyor belts, food packaging, pharmaceutical packaging, winches, and cranes.

มอเตอร์ลม GAST รุ่น 1AM Series

มอเตอร์ลม GAST รุ่น 1AM Series ขนาดเล็ก ติดตั้งง่าย และเคลื่อนย้ายสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ ควบคุมความดัน และปริมาณอากาศได้ มากกว่ามอเตอร์ไฟฟ้า นอกจากนี้มอเตอร์ลม Gast เหมาะสำหรับการใช้งานในสถานที่ที่มีอุณหภูมิสูงเพื่อป้องกันการระเบิดได้และยังสามารถรับแรงดันได้สูงสุด7บาร์หรือ100PSI อีกด้วย

AIR MOTOR GAST Model 1AM Series

AIR MOTOR GAST Model 1AM Series​ is small-sized easy to install and convenient to move. It can adjust its rotational speed according to the desired requirements, control pressure, and regulate air volume. It offers more capabilities compared to electric motors. In addition, GAST air motors are suitable for use in high-temperature environments to prevent explosions, and they can withstand a maximum pressure of 7 bar or 100 PSI.

คุณสมบัติ

  • ลักษณะมอเตอร์ลมการติดตั้ง แบบ Hub mounting
  • มีระบบปรับความเร็วรอบแปรผันได้ถึง 10,000 รอบ
  • สามารถปรับแรงบิดได้มากถึง 5.6 lb-in ( 0.7 Nm )
  • มาพร้อมกับ Muffler AF350
  • ไม่ทำให้เกิดประกายไฟ
  • เคลื่อนย้ายและติดตั้งสะดวก
  • สามารถทำงานได้ทุกตำแหน่ง

Feature

  • The air motor features a Hub mounting installation.
  • It has a variable speed control system that can reach up to 10,000 RPM.
  • It can generate a maximum torque of 5.6 lb-in (0.7 Nm).
  • It comes with an AF350 Muffler.
  • It does not produce sparks.
  • It is easy to move and install.
  • It can work in any position.

SPECIFICATION

MODEL GAST 1AM-NCW-14 GAST 1AM-NRV-39A
Mount Hub mounting Hub mounting
Rotation CLOCKWISE REVERSIBLE
Fitting in 1/8 NPT 1/8 NPT
Vane 4 4
Motor HP 0.4 0.4
Max Torque Nm 0.65 0.65
Max Speed RPM 10,000 10,000
WxLxH mm 62x108x57 62x108x57
