Air-Powered Gear Motors GAST 6AM-CB10(GM) Series

มอเตอร์ลมใส่เกียร์ทด รุ่น 6 AM-CB10(GM) series สินค้านำเข้าจากอเมริกา ขนาดเล็ก กะทัดรัด เคลื่อนย้ายและติดตั้งสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ โดยสามารถทดรอบได้ถึง 10:1 ทำให้ลดความเร็วรอบลงแต่เพิ่มแรงบิดให้สูงขึ้นนอกจากนี้ยังไม่ทำให้เกิดประกายไฟ สามารถทำงานในพื้นที่ไวไฟได้ซึ่งทิศทางการหมุนเป็นแบบหมุนสองทิศทาง

Air-Powered Gear Motors GAST 6AM-CB10(GM) Series imported product from America is a compact and versatile air motor. It is designed for easy movement and installation.

มอเตอร์ลมใส่เกียร์ทด GAST รุ่น 6AM-CB10(GM) Series

มอเตอร์ลมใส่เกียร์ทด รุ่น 6 AM-CB10(GM) series สินค้านำเข้าจากอเมริกา ขนาดเล็ก กะทัดรัด เคลื่อนย้ายและติดตั้งสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ โดยสามารถทดรอบได้ถึง 10:1 ทำให้ลดความเร็วรอบลงแต่เพิ่มแรงบิดให้สูงขึ้นนอกจากนี้ยังไม่ทำให้เกิดประกายไฟ สามารถทำงานในพื้นที่ไวไฟได้ซึ่งทิศทางการหมุนเป็นแบบหมุนสองทิศทาง

Air-Powered Gear Motors GAST 6AM-CB10(GM) Series

Air-Powered Gear Motors GAST 6AM-CB10(GM) Series imported product from America is a compact and versatile air motor. It is designed for easy movement and installation. It allows for adjustable rotational speed according to specific requirements, with a maximum speed ratio of 10:1. This enables a reduction in rotational speed while increasing torque output. Additionally, the motor does not produce sparks, ensuring safety. It is suitable for operating in environments with flammable gases or liquids. The motor can rotate in both clockwise and counterclockwise directions, making it versatile for various applications.

คุณสมบัติ

  • สามารถทดรอบได้ถึง 10:1
  • ลักษณะมอเตอร์ลมใส่เกียร์ทด เป็นแบบ Base mounting
  • สามารถติดตั้งเพลาเสริมได้
  • มาพร้อมกับ Muffler
  • ไม่ก่อให้เกิดประกายไฟ
  • เคลื่อนย้ายและติดตั้งสะดวก

Feature

  • A maximum speed ratio of 10:1.
  • Base mounting design for easy installation.
  • Capability to accommodate auxiliary pulleys.
  • Includes a muffler.
  • Spark-free operation.
  • Convenient movement and installation.

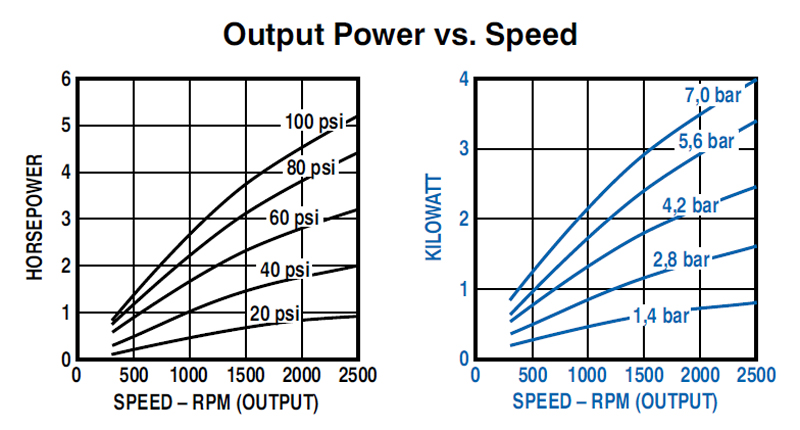

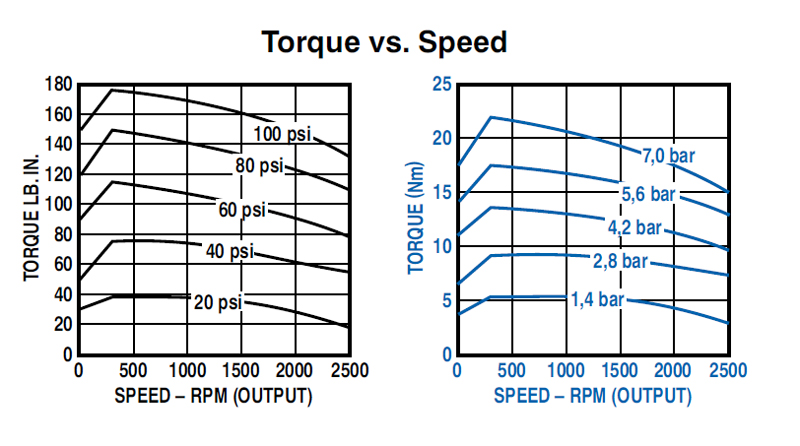

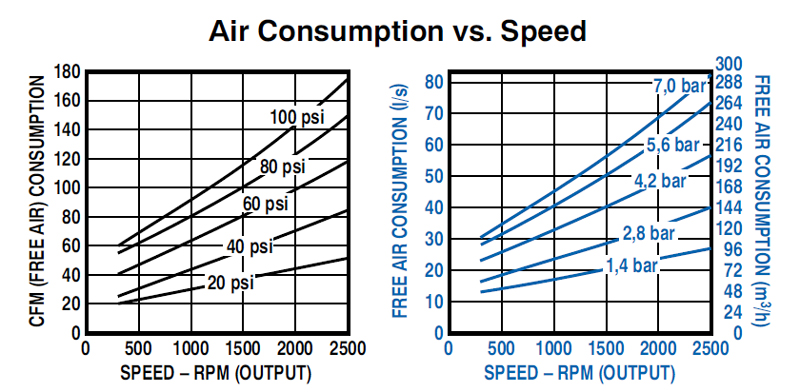

Performance Curve

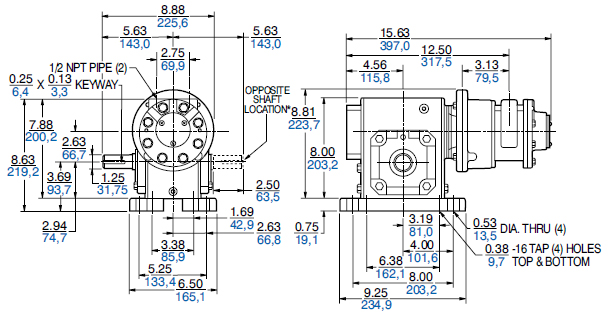

Dimension

SPECIFICATION

MODEL GAST 6AM-22A-CB10 (10:1)
Mount BaseMounting
Rotation REVERSIBLE
Vane 8
Fitting in 1/2NPT
Motor HP 3.5
Max Speed RPM 300
Max Torque Nm 110
WxLxH mm 226x397x220
