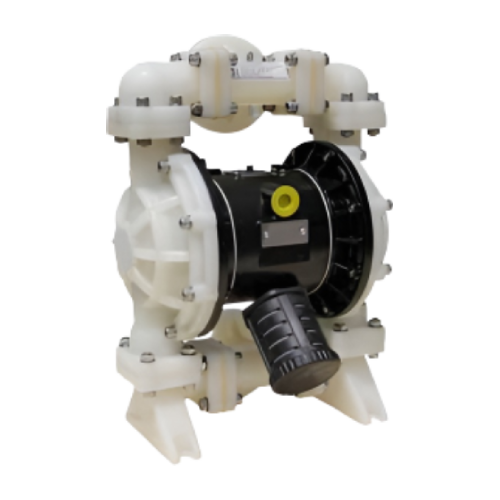

ปั๊มไดอะแฟรม Chempro ตัวปั๊มผลิตจากวัสดุพลาสติก ประเภท PP มีจุดเด่นในเรื่องของทนทานการกัดกร่อนจากสารเคมีได้ดี
Chempro AODD Pump is made of plastic material, specifically PP (Polypropylene). It is known for its excellent resistance to chemical corrosion.
Technical Parameter | Material Quality | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | Suction lift [mwc] |
Max particle diameter [mm] |
Suction and discharge Size [in] |
AIR inlet size [in] |
Max frow [I/min] |
Maxhead [m] |
Max air inlet pressure [bar] |
Pump body |
Diaphragm | Valve ball |
Valve seat |
Center Block |
|
dry | wet | ||||||||||||
DP06 | 2.1 | 3.7 - 6.4 |
1.6 | 1/4, 3/8 | 1/4 | 27 | 70 | 7 | PP, PVD, POM |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
PP, PVD, POM |
PP | |
DP15 | 2.1 | 3.7 - 6.4 |
1.6 | 1/4, 3/8 | 1/4 | 27 | 70 | 7 | PP, PVD, POM |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Teflon, Stainless steel, Santoprene |
PP, PVD, POM |
PP |
DP25 | 4 | 8 | 4 | 1.'' | 1/2 | 157 | 84 | 8.4 | PP, PVD, POM |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Teflon,Stainless steel, Santoprene, Hytrel, Viton,EPDM,Buna-N. |
Teflon, Santoprene, Hytrel, Viton, PP |
PP, Aluminum, Stainless steel |
DP40 | 5 | 8 | 5 | 1-1 / 2" | 1/2 | 358 | 84 | 8.4 | PP, PVDF |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Teflon,Santoprene, Stainlees steel,Ceramic Hytrel,Viton, |
Teflon, Stainlees steel, Santoprene, Hytrel,Viton |
PP, Aluminum, Stainless steel |
DP50 | 5 | 8 | 5 | 2." | 1/2 | 587 | 84 | 8.4 | PP, PVDF |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Teflon,Stainlees steel, Santoprene,Hytrel, Viton, Ceramic |
Teflon, Stainlees steel, Santoprene, Hytrel, Viton,PP |
PP, Aluminum, Stainless steel |
DP80 | 5 | 8 | 9.4 | 3" | 3/4 | 1060 | 84 | 8.4 | PP, PVDF |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Teflon,Stainlees steel, Santoprene,Hytrel, Viton, Ceramic |
Teflon, Stainlees steel, Santoprene, Hytrel, Viton,PP |
PP, Aluminum, Stainless steel |
