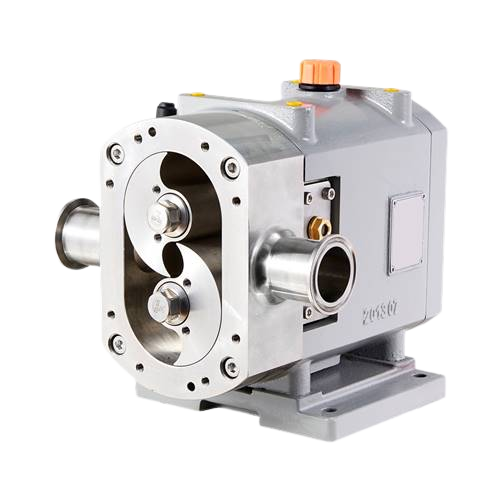

ปั๊มสูบจ่ายของหนืด DOSSER รุ่น LR Series เป็น ปั๊มสูบของเหลว แบบอัตราการไหลคงที่ ภายในหัวปั๊ม มีใบพัด 2 ใบ ยึดติดกับเพลาสองตัวและหมุนซิงโครไนซ์ในทิศทางกลับกัน การหมุนจะสร้างปริมาตรสูญญากาศที่ด้านเข้าออก ของเหลวถูกดูดเข้าไปในหัวปั๊มและเคลื่อนที่ไประหว่างใบพัด กับห้องเสื้อ เหมาะกับอุตสาหกรรมทุกชนิด โดยเฉพาะเป็นปั๊มในอุตสาหกรรมอาหาร
DOSSER Lobe Pump LR Series is a positive displacement pump, which has two rotors in the pump head. The two rotors fixed on two shafts and rotate syn-chronically in counter direction. The rotation creates vacuum volume on the inlet side. The liquid is sucked into the pump head and travels around in the chamber between the rotor and the pump head casing, and is forced out on the outlet side.
Single lobe rotor pump ใบพัดประเภทนี้ เหมาะกับการใช้งาน ในการถ่ายของไหลที่มีการปะปนของอนุภาคอื่นๆ อัตราการไหลไม่สูงมากนัก เช่น เนื้อสัตว์บด
Butterfly rotor pump ใบพัดประเภทนี้ สามารถใช้งานได้ดี เมื่อใช้กับการถ่ายของเหลวที่มีความหนืดสูง และมีอนุภาคขนาดกลาง และขนาดเล็กปะปน จะให้อัตราการไหลและแรงดันที่ไม่สูงมากนักแต่จะสูงกว่าแบบ Single Impeller โดยชิ้นส่วนของไหล จะไม่ถูกทำลาย เช่น โยเกิร์ตที่มีเนื้อสตรอเบอรี่
Three-Lobe Rotor Pump ใบพัดประเภทนี้มีกำลังการถ่ายโอนที่ดีและช่องว่างน้อย เหมาะอย่างยิ่งสำหรับการใช้งานกับของเหลวที่เป็นเนื้อเดียวกันและมีความหนืด
เช่น น้ำยาปรับผ้านุ่ม
One Lobe Rotor This type of rotor is for liquid with large particles. But the speed should not be high and will cause pulses.
Two-lobe Rotor/Butterfly Rotor This type of rotor is superior to other rotors when transferring material with high viscosity and large powder, especially stiff particles. Output liquid cause less pulses and components will not be destroyed.
Three-lobe Rotor This type of rotor has good transferring capacity and low pulses. It is especially suitable for medium that is easy foaming. It also has good flow control benefits.
MODEL | CAPACITY | Flow | Speed | Max Pressure | Visosity | Power | Connection | |
---|---|---|---|---|---|---|---|---|
L/R | m3/h | rpm | Mpa | cp | kw | Hoop | Flange | |
LR11-L | 0.05 | 0-1 | 40-700 | 1 | 1-500000 | 0.25-1.5 | 1" | DN20 |
LR112-L | 0.7 | 1.6-1.2 | 40-450 | 1.5 | 1-1000000 | 3.0-15 | 2.5″ | DN50 OR 65 |
LR1120-L | 11 | 26-120 | 40-350 | 1.5 | 1-1000000 | 22-90 | 4″ | DN150 |
LR12-L | 0.1 | 0.2-2 | 40-700 | 1.2 | 1-500000 | 0.55-2.2 | 1.25" | DN25 |
LR120-L | 1.2 | 2.8-20 | 40-400 | 1.5 | 1-1000000 | 4.0-18.5 | 3″ | DN65 OR 80 |
LR13-L | 0.17 | 0.4-3 | 40-500 | 1.2 | 1-1000000 | 0.75-3.0 | 1.5" | DN32 |
LR135-L | 2.1 | 5.-35 | 40-400 | 1.5 | 1-1000000 | 7.5-30 | 4″ | DN100 |
LR15-L | 0.26 | 0.6-5 | 40-500 | 1.5 | 1-1000000 | 1.5-5.5 | 2″ | DN40 |
LR155-L | 4.2 | Oct-55 | 40-350 | 1.5 | 1-1000000 | Nov-45 | 4″ | DN125 |
LR18-L | 0.46 | 01-Aug | 40-450 | 1.5 | 1-1000000 | 2.2-11 | 2.5″ | DN50 |
LR180-L | 6.7 | 16-80 | 40-350 | 1.5 | 1-1000000 | 15-75 | - | DN125 OR 150 |
