ปั๊มสูบน้ำมัน KOSHIN GM Series เป็นเครื่องสูบจ่ายน้ำมันหล่อลื่น แบบมอเตอร์ไฟฟ้ากระแสตรง สามารถต่อใช้งานกับแบตเตอรี่ น้ำหนักเบา สามารถสูบน้ำมันได้หลายชนิด เช่น น้ำมันเครื่อง น้ำมันดีเซล เป็นต้น
Oil pump KOSHIN GM Series It is a lubricant pump. direct current electric motor Can be connected to work with batteries, light weight, able to pump many types of oil such as engine oil, diesel oil, etc.
ปั๊มสูบน้ำมัน (Oil Pump) KOSHIN GM Series ปั๊มสูบถ่ายน้ำมันหล่อลื่น แบบมอเตอร์ไฟฟ้ากระแสตรง (DC 24V)สามารถต่อใช้งานร่วมกับแบตเตอรี่ได้ มีขนาดท่อ 25 mm. (1″) มีวาล์วสำหรับส่งผ่านของเหลวกรณีที่ตัวเครื่องสูบติดปัญหา เหมาะสำหรับใช้ในงานสำหรับสูบน้ำมันได้หลากหลายชนิด เช่น น้ำมันเครื่อง น้ำมันดีเซล น้ำมันมอเตอร์ ฯลฯ
Oil pump (Oil Pump) KOSHIN GM Series lubricant pump. Direct current electric motor (DC 24V) can be connected to the battery, has a pipe size of 25 mm. (1″), has a valve for passing liquid in case the pump is stuck. Suitable for use in pumping a variety of oils such as engine oil, diesel oil, motor oil, etc.
Model | KOSHIN GM-2524H | |
---|---|---|
Pump | Dia of Hose Inlet | 25 mm (1″) |
Dia of Hose Outlet | 20 mm (¾”) | |
Connection Thread | Inner Pipe Thread | |
Max. Delivery Pressure | 0.2 MPa (2 kgf/cm2) | |
Delivery Volume | 20 L/min (5 USG/min) | |
Applicable Viscosity | 800 cst | |
Motor | Voltage | DC 24 V |
Rated Current | 16 A | |
Output | 200 W | |
Revolution | 6200 rpm | |
Rating | 25 min | |
Power Cord | 5 m (16 ft) | |
Gross Weight | 10 kg (22.1 lbs) | |

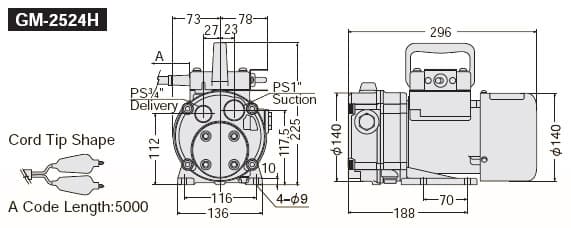

Dimensions LxWxH (mm) | 320 × 188 × 268 | |
Packing Unit | 1 |
