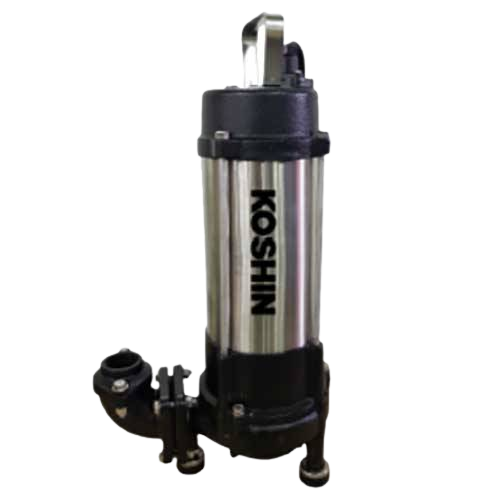

ปั๊มแช่ (Grinder Pump) KOSHIN PKG Series เป็นปั๊มที่เหมาะสำหรับนำไปใช้กับงานสูบน้ำที่มีตะกอนปะปนอยู่ ตัวปั๊มสามารถใช้สูบน้ำ ที่มีเศษอินทรีย์วัตถุ, เศษขยะมูลฝอย หรือเศษผ้าได้
Submersible Pump KOSHIN PKG Series It is a pump that is suitable for use in pumping water that is mixed with sludge. The pump can be used to pump water. with organic matter, solid waste or rags
ปั๊มแช่ (Submersible Pump) KOSHIN PKG Series ใบพัดของปั๊มเป็นแบบ Grinder ผลิตจากวัสดุเหล็กชุบด้วยโครเมียม ทำให้สามารถใช้กับงานตัดบดให้เป็นชิ้นส่วนเล็ก ๆ ได้ ทำให้ตัวเครื่องไม่มีปัญหาเรื่องการอุดตัน สามารถสูบน้ำที่มี ตะกอนที่เป็น อินทรีย์วัตถุ ,เศษผ้า หรือเศษขยะมูลฝอยได้
Submersible Pump KOSHIN PKG Series impeller of the pump is a Grinder made of steel material plated with chromium. This makes it possible to use it for cutting and grinding into small parts, so that the machine does not have problems with clogging. Able to pump water containing sediments that are organic matter, rags or solid waste.
MODEL | Discharge Bore | PUMP SECTION | ||
---|---|---|---|---|
d | A | D | H | |
KOSHIN PKG-750 | 1 1/4" (32) | 300 | 170 | 557 |
KOSHIN PKG-1200 | 1 1/4" (32) | 300 | 170 | 557 |
KOSHIN PKG-1500 | 1 1/4" (32) | 305 | 170 | 605 |
Model | Output (kW.) | Output (HP) | Discharge (inch) | Voltage | Max | Cable (M.) | Weight (kg.) | ||
---|---|---|---|---|---|---|---|---|---|
Head (M.) | Capacity (L/min.) | Solid (mm.) | |||||||
KOSHIN PKG-750 | 0.75 | 1 | 1 1/4 | 1 Phase 100V-240V | 14/14 | 185/185 | 3 | 10 | 29 |
KOSHIN PKG-1200 | 1.2 | 1.5 | 1 1/4 | 19/19 | 190/190 | 3 | 10 | 31 | |
KOSHIN PKG-Series | 1.5 | 2 | 1 1/4 | 22/22 | 190/190 | 3 | 10 | 37 |
