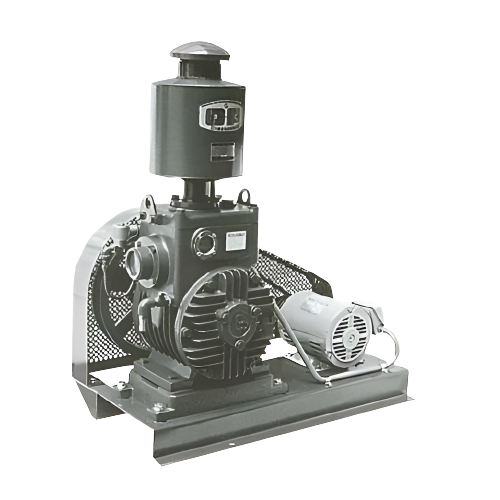

ปั๊มสุญญากาศ โอพี (Vacuum Pump) OP รุ่น RV SERIES เป็นปั๊มสุญญากาศ ระบบ Rotary Vane ใช้น้ำมัน เหมาะสำหรับโรงงานขนาดใหญ่ที่ในอุตสาหกรรมหนัก เช่น อุตสาหกรรมอาหาร อบไม้แห้ง ที่ต้องการดูดความชื้นได้อย่างต่อเนื่อง สามารถดูดอากาศได้นาน ทนทาน ไม่สึกหลอ
Vacuum Pump OP Model RV Series It is suitable for large-scale factories in heavy industries such as food industry and kiln-drying industry, where continuous moisture extraction is required. It is capable of prolonged air suction, durable, and non-irritating.
ปั๊มสุญญากาศ โอพี (Vacuum Pump) OP รุ่น RV SERIES สินค้านำเข้าจากญี่ปุ่น เป็นปั๊มสุญญากาศ ระบบ Rotary Vane ใช้น้ำมัน เหมาะสำหรับโรงงานขนาดใหญ่ที่ในอุตสาหกรรมหนัก เช่น อุตสาหกรรมอาหาร อบไม้แห้ง ที่ต้องการดูดความชื้นได้อย่างต่อเนื่อง สามารถดูดอากาศได้นาน ทนทาน ไม่สึกหลอ
Vacuum Pump OP Model RV Series imported from Japan, is a rotary vane vacuum pump that uses oil. It is suitable for large-scale factories in heavy industries such as food industry and kiln-drying industry, where continuous moisture extraction is required. It is capable of prolonged air suction, durable, and non-irritating.
Model | RV-1N | RV-2A | RV-2W | RV-3 | RV-10 | RV-15 | |
---|---|---|---|---|---|---|---|
Free Air Displacement | l/min | 360 | 800 | 800 | 1200 | 4500 | 7000 |
Motor | kW | 0.75 | 1.5 | 1.5 | 2.2 | (6P) 7.5 | (6P) 11 |
Ultimate Pressure | /min | 13 | 13 | 13 | 13 | 13 | 13 |
Pump Speed | Pa | 350 | 450 | 450 | 600 | 300 | 460 |
Intake Connection | min-1 | PT1½ | PT2 | PT2 | PT2 | 100 (V●F) | 100 (V●F) |
Exhaust Connrction | PF1½ | PF3 | PF3 | PF3 | 100 (V●F) | 100 (V●F) | |
Oil Capacity | l | 2 | 3.2 | 3.2 | 3.2 | 33 | 33 |
Cooling Water | l/min | – | – | 5 | 5 | 10 | 15 |
Water Intake Connection | – | – | 3/8 | 3/8 | 2/1 | 2/1 | |
Weight (Pump Only) | kg | 57 | 104 | 122 | 122 | 308 | 308 |
Weight (W/Base) | kg | 70 | 132 | 150 | 150 | 461 | 464 |
Motor Pulley | 50/60 Hz | 89/76 | 114/102 | 114/102 | 140/127 | 140/114 | 203/178 |
V-Belt | A2-60 | A2-64 | A2-64 | A2-66/65 | B4-106 | C3-109 | |
Noize (at 1.3kPa) | dB (A) | 75 | 80 | 76 | 84 | 68 | 70 |
