ปั๊มสุญญากาศ WOOSUNG รุ่น MVP Series เป็นปั๊มสุญญากาศใบพัดแบบหมุนวนแบบสองขั้นตอน (two-stage oil sealed rotary vane) มีความสามารถดูดน้ำได้อย่างรวดเร็วมีประสิทธิภาพสูง เสียงเงียบและสั่นสะเทือนต่ำ บำรุงรักษาง่ายในการเปลี่ยนถ่ายน้ำมัน
Vacuum Pump WOOSUNG VP Series is a two-stage oil-sealed rotary vane air compressor that has the ability to rapidly draw in water with high efficiency. It operates quietly with low vibrations and is easy to maintain, especially when it comes to changing the oil.

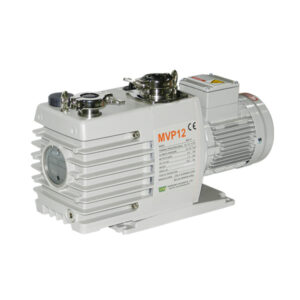

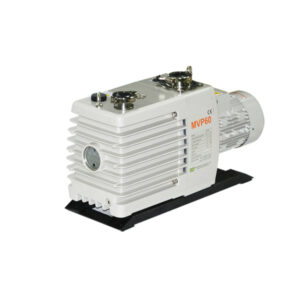

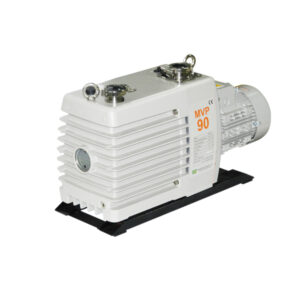

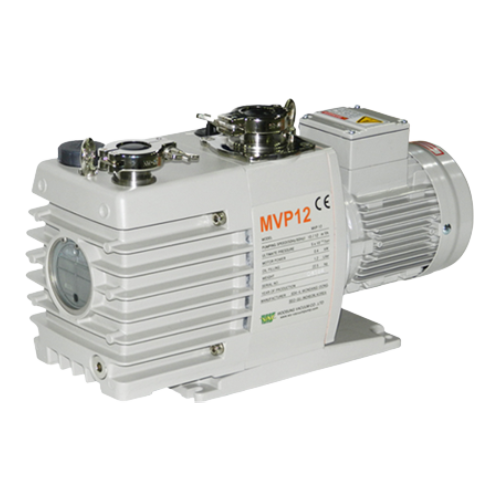

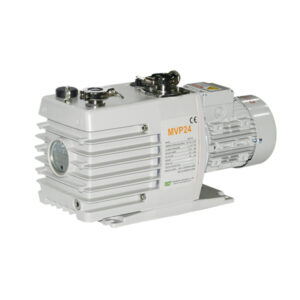

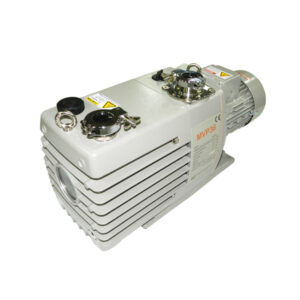

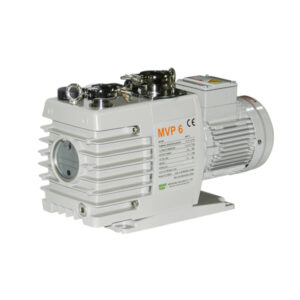

ปั๊มสุญญากาศ WOOSUNG รุ่น MVP Series เป็นปั๊มสุญญากาศใบพัดแบบหมุนวนแบบสองขั้นตอน (two-stage oil sealed rotary vane) สินค้าคุณภาพนำเข้าจากประเทศเกาหลีใต้ มีความสามารถดูดน้ำได้อย่างรวดเร็วมีประสิทธิภาพสูง เสียงเงียบและสั่นสะเทือนต่ำ บำรุงรักษาง่ายในการเปลี่ยนถ่ายน้ำมัน มีให้เลือกใช้งานทั้งหมด 6 รุ่นด้วยกัน ประกอบด้วยรุ่น MVP6, MVP12, MVP24, MVP36, MVP60 และรุ่น MVP90
Vacuum Pump WOOSUNG MVP Series is high-quality imported air compressors, specifically two-stage oil-sealed rotary vane pumps. They are manufactured in South Korea. They have the capability to rapidly draw in water, providing efficient and high-performance operation. They operate quietly with minimal vibrations. Maintenance is easy, particularly when it comes to changing the oil. There are a total of six models available: MVP6, MVP12, MVP24, MVP36, MVP60, and MVP90.

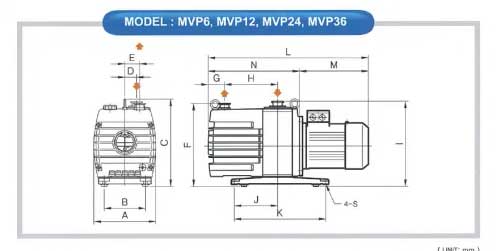

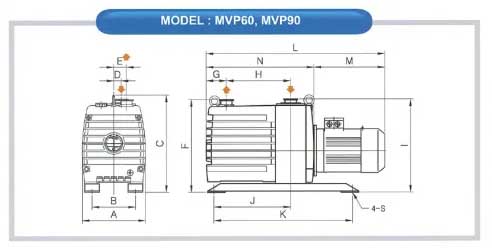

Model | A | B | C | D | E | F | G | H | I | J | K | N | S | M | L |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WOOSUNG MVP6 | 170 | 120 | 261 | 24 | 40 | 247 | 45 | 130 | 253 | 94 | 240 | 244 | Ø9 | 210 | 454 |
WOOSUNG MVP12 | 170 | 120 | 261 | 24 | 40 | 247 | 45 | 155 | 253 | 94 | 240 | 269 | Ø9 | 210 | 479 |
WOOSUNG MVP24 | 210 | 140 | 297 | 40 | 50 | 282 | 55 | 180 | 288 | 147 | 310 | 310 | Ø12 | 234 | 543 |
WOOSUNG MVP36 | 210 | 140 | 297 | 40 | 50 | 282 | 58 | 210 | 288 | 147 | 310 | 310 | Ø12 | 234 | 576 |
Descriptions/Model | UNIT | WOOSUNG MVP6 | WOOSUNG MVP12 | WOOSUNG MVP24 | WOOSUNG MVP36 | WOOSUNG MVP60 | WOOSUNG MVP90 | |
---|---|---|---|---|---|---|---|---|

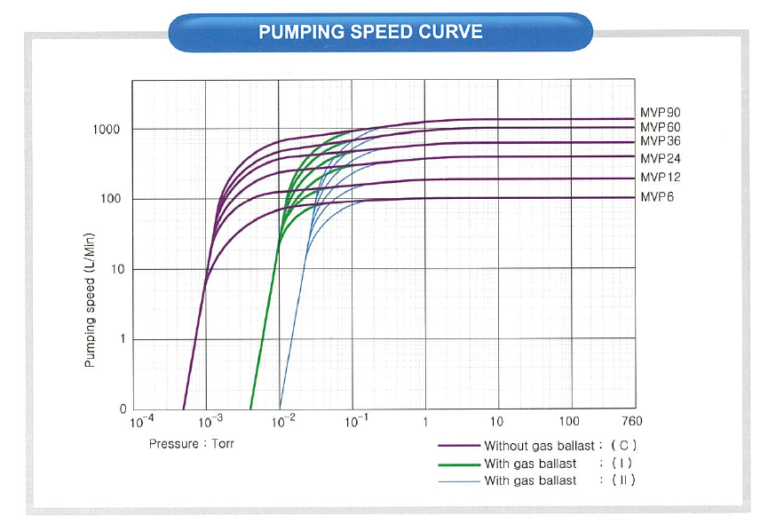

Displacement speed | 60Hz | m3/h | 6 | 12 | 24 | 36 | 60 | 90 |
L/Min | 100 | 200 | 400 | 600 | 1000 | 1500 | ||
50Hz | m3/h | 5 | 10 | 20 | 30 | 50 | 75 | |
L/Min | 80 | 170 | 335 | 500 | 830 | 1250 | ||
Ultimate pressure | Gas ballast C | Torr | 5 x 10-4 | |||||
Gas ballast I | Torr | 5 x 10-3 | ||||||
Gas ballast II | Torr | 5 x 10-2 | ||||||
Water Vapour tolerance | Torr | 40 | 40 | 25 | 25 | 40 | 40 | |
Oil filling | L | 1.1. | 1.2 | 2 | 2.3 | 4.5 | 6.5 | |
Inlet port | DN | 25KF | 40KF | |||||
Outlet port | DN | 25KF | 40KF | |||||
Motor power | kw | 0.4 | 0.75 | 1.5 | 2.2 | |||
Rotational speed of pump | 60Hz | R.P.M | 1750 | |||||
50Hz | R.P.M | 1450 | ||||||
Noise level (without gas ballast) |
db | 50 | 50 | 52 | 52 | 56 | 56 | |
Weight | Kg. | 21 | 22.5 | 38 | 41 | 68 | 84 |
