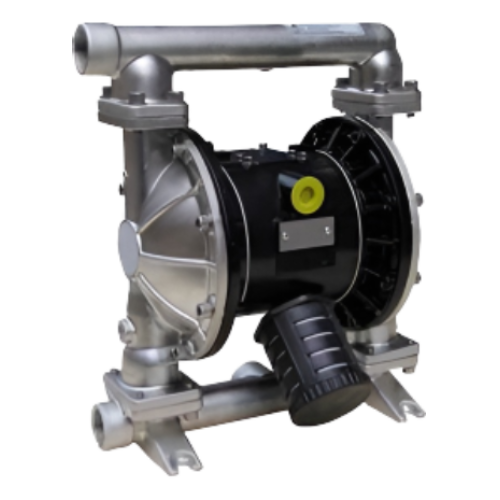

ปั๊มไดอะแฟรม (AODD Pump) CHEMPRO รุ่น DP Stainless steel มีการทำงานแบบดูด-อัด ออกแบบมาอย่างดีเยี่ยม มีความต้านทานต่อการกัดกร่อน ทนต่อแรงดัน ได้ดีและมีอายุการใช้งานยาวนาน
CHEMPRO DP Series Stainless steel model of AODD Pump is operates on the principle of suction and compression. It is designed to be excellent, resistant to corrosion, withstand high pressure, and have a long service life.
Technical Parameter | Material Quality | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | Suction lift [mwc] |
Max particle diameter[mm] |
Suction and discharge Size [in] |
AIR inlet size [in] |
Max frow [I/min] |
Maxhead [m] |
Max air inlet pressure [bar] |
Pump body |
Diaphragm | Valve ball |
Valve seat |
Center Block |
|
dry | wet | ||||||||||||
DP15 | 4 | 7.6 | 2.5 | 1/2, 3/4 | 3/8 | 57 | 84 | 8.47 | SS304, SS316, SS316L |
Santoprene, Hytrel,teflon, Viton,EPDM, Buna-N | SS304, SS316, SS316L |
Teflon, Stainlees steel, Santoprene |
PP |
DP25 | 4 | 8 | 1.6 | 1" | 1/2 | 157 | 84 | 8.4 | SS304, SS316, SS316L |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Santoprene, Hytrel, teflon, Viton, Stainless steel, Ceramic |
Santoprene, Hytrel teflon, Viton, Stainless steel | PP, Aluminum, Stainless steel |
DP40 | 5 | 8 | 5 | 1-1/2" | 1/2 | 358 | 84 | 8.4 | SS304, SS316, SS316L |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Teflon,Stainless steel,Santoprene, Hytrel,Viton, EPDM,Buna-N. |
Teflon, Santoprene, Hytrel, Viton, PP |
PP, Aluminum, Stainless steel |
DP50 | 5 | 8 | 5 | 2" | 1/2 | 587 | 84 | 8.4 | SS304, SS316, SS316L |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Teflon,Santoprene,Hytrel,Viton, Stainlees steel,Ceramic |
Teflon, Stainlees steel, Santoprene, Hytrel,Viton |
PP, Aluminum, Stainless steel |
DP80 | 5 | 8 | 9.4 | 3" | 3/4 | 1060 | 84 | 8.4 | SS304, SS316, SS316L |
Santopren, Hytrel,Teflon, Viton,EPDM, Buna-N |
Teflon,Stainlees steel,Santoprene, Hytrel, Viton, Ceramic |
Teflon, Stainlees steel, Santoprene, Hytrel, Viton,PP |
PP, Aluminum, Stainless steel |
