มอเตอร์ลมใส่เกียร์ทด รุ่น 4AM-GR20(GM) series สินค้านำเข้าจากอเมริกา ขนาดเล็ก กะทัดรัด เคลื่อนย้ายและติดตั้งสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ โดยสามารถทดรอบได้ถึง 10:1 ทำให้ลดความเร็วรอบลง แต่เพิ่มแรงบิดให้สูงขึ้น นอกจากนี้ยังไม่ทำให้เกิดประกายไฟ สามารถทำงานในพื้นที่ไวไฟได้ซึ่งทิศทางการหมุนเป็นแบบหมุนสองทิศทาง

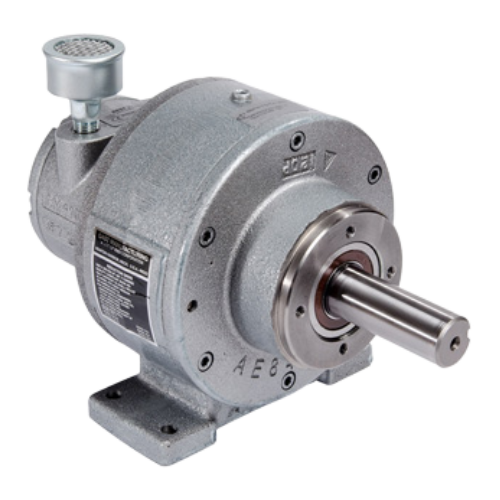

Air-Powered Gear Motors GAST 4 AM-GR20(GM) series is imported from America and is compact in size, making it easy to handle and install. It provides convenient movement and installation. It offers adjustable rotational speed according to specific requirements, with a maximum gear ratio of 10:1. This allows for a reduction in rotational speed while increasing torque. Moreover, the product is spark-free, ensuring safety during operation. It can be used in areas with flammable substances and is capable of rotating in both clockwise and counterclockwise directions.
Air-Powered Gear Motors GAST 4 AM-GR20(GM) Series is easy installation and convenient mobility, allowing for adjustable speed according to the requirements. The gear motor can be tested up to 10:1 gear ratio, which is suitable for applications that require speed reduction while increasing torque to prevent motor damage. The air motor is an electrical-free device, making it suitable for use in high-temperature and hazardous environments where sparks must be avoided. The GAST air motor can be used in areas with high temperatures and hazardous conditions, including areas with flammable substances.
MODEL | GAST 4AM-RV-75-GR20 (10:1) | |
---|---|---|
Mount | FACE/FOOT Mounting | |
Rotation | REVERSIBLE | |
Vane | 4 | |
Fitting | in | 1/4NPT |
Motor | HP | 1.26 hp |
Max Speed | RPM | 300 |
Torque@Max Speed | Nm | 31 |
Speed@Max Torque | RPM | 20 |
Max Torque | Nm | 72 |
WxLxH | mm | 156x294x169 |
