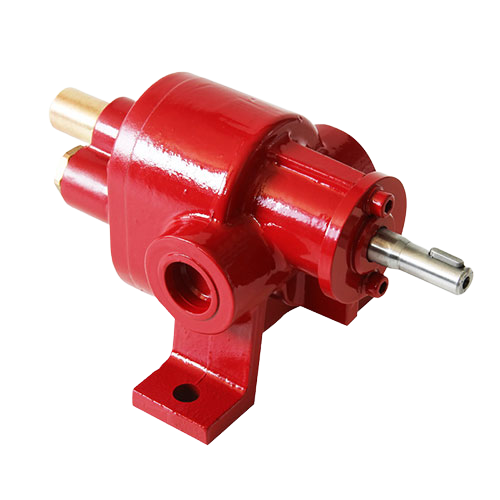

ปั๊มเฟือง CUCCHI (Gear Pump) B Series ปั๊มเฟืองชนิดเพลาลอย สินค้านำเข้าจากประเทศอิตาลี ผลิตจากเหล็กคุณภาพสูง มีให้เลือกทั้งแบบต่อยอยและประกอบรถเข็นทุกตัวมีระบบหมุนเวียนของเหลวในตัว (By pass Valve) ป้องกันการอั้นแรงดัน เหมาะสำหรับสูบจ่าย หรือ หมุนเวียนของเหลวหนืด อาทิเช่น น้ำมันเชื้อเพลิง, น้ำมันพืช, น้ำเชื่อมเข้มข้น ,แชมพู และของเหลวต่างๆ เป็นต้น
Gear Pump CUCCHI B Series Floating impeller pumps, imported from Italy, are made of high-quality steel. They are available in both self-priming and mobile versions, and every unit has a built-in fluid circulation system (By-pass Valve) to prevent pressure build-up. These pumps are suitable for suction, delivery, or fluid circulation of viscous liquids such as fuel, vegetable oil, concentrated detergents, shampoo, and various other liquids.
ปั๊มเฟือง (Gear Pump) CUCCHI รุ่น B Series เกียร์ปั๊ม หรือ ปั๊มสำหรับดูดของเหลวที่มีความหนืด ชนิดเพลาลอย ที่มีระบบ By pass Valve เพื่อป้องกันกันอั้นของแรงดันภายในตัวปั๊ม ทำให้ของเหลวไม่ไหลย้อนกลับออกไปทางเข้าของตัวปั๊ม สามารถเลือกใช้งานได้ทั้ง 2 แบบ คือแบบต่อยอยและแบบประกอบรถเข็น
เกียร์ปั๊ม CUCCHI B Series เป็นปั๊มสูบ-จ่ายของเหลวหนืด โดยมีหลักการทำงานแบบสร้างแรงกดันภายในเพื่อทำการสูบของเหลวที่มีความหนืดที่มีความแม่นยำ เหมาะสำหรับนำมาใช้สูบจ่ายของเหลว ในโรงงานอุตสาหกรรมต่างๆเช่น โรงงานน้ำมันพืช น้ำมันเชื้อเพลิง น้ำเชื่อมเข็มข้น แชมพู และของเหลวต่างๆ เป็นต้น
Gear Pump CUCCHI B Series is a floating impeller pump designed for suctioning viscous fluids. It features a By-pass Valve system to prevent pressure build-up within the pump, ensuring that the fluid does not flow back into the pump inlet. This pump can be used in both self-priming and mobile configurations.
Gear Pump CUCCHI B Series is a pump specifically designed for suctioning and delivering viscous liquids. It operates by generating internal pressure to effectively suction fluids with precision. It is suitable for various industrial applications such as vegetable oil factories, fuel oil facilities, concentrated detergent production, shampoo manufacturing, and handling other types of fluids.
MODEL | SPECIFICATION | ||
---|---|---|---|
Capacity (liter/min) | power (HP) | Outlet (inch) | |
CUCCHI MG 010 | 12.5 | 0.5 | 3/4 |
CUCCHI MG 025 | 25 | 1 | 3/4 |
CUCCHI BG 040 | 43 | 2 | 1 |
CUCCHI BG 050 | 55 | 2 | 1 1/2 |
CUCCHI BG 070 | 77 | 3 | 1 1/2 |
CUCCHI BG 100 | 114 | 4 | 2 |
CUCCHI BG 150 | 160 | 5.5 | 2 |
CUCCHI BG 200 | 215 | 7.5 | 2 1/2 |
CUCCHI BG 300 | 320 | 10 | 2 1/2 |
CUCCHI BG 400 | 418 | 20 | 2 1/2 |
CUCCHI BG 500 | 525 | 25 | 3 |
CUCCHI BG 600 | 625 | 30 | 3 |
