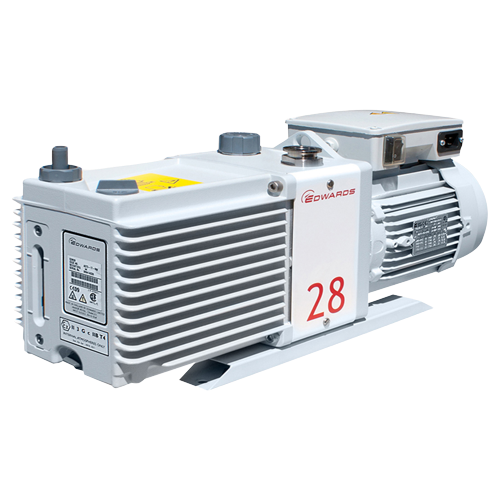

ปั๊มสุญญากาศ Edwards รุ่น EM Series แข็งแรง ทนทาน ป้องกันการไหลรั่วด้วยแมคคานิคอลออยซีล ออกแบบให้มีขนาดกะทัดรัดและเสียงเงียบ ความน่าเชื่อถือสูง พร้อมอุปกรณ์เสริมเพื่อให้เหมาะกับความต้องการใช้งานเฉพาะของคุณ เหมาะอย่างยิ่งสำหรับการจัดการกับสภาพแวดล้อมที่มีก๊าซมาก เช่น การทำให้แห้งด้วยการแช่แข็ง ยาหรือระบบทำความเย็น ทำงานได้ตามมาตรฐานอุตสาหกรรม ไม่มีการปนเปื้อน ของกระบวนการและการหล่อลื่นที่มีประสิทธิภาพ
Vacuum Pump Edwards Model EM Series Durable, resilient, and leak-proof with mechanical seal protection, designed to be compact, silent, and highly reliable. Equipped with additional accessories to suit your specific needs. Particularly suitable for handling environments with high gas levels, such as achieving dryness through freezing, medication usage, or refrigeration systems. Operates according to industrial standards, without contamination from efficient process and lubrication methods.
Model | Units | EDWARD E2M0.7 | EDWARD E2M1.5 | EDWARD E1M18 | EDWARD E2M18 | EDWARD E2M28 |
---|---|---|---|---|---|---|
Vacuum date | ||||||
Peak pumping speed, 50 Hz (60 Hz) | m³h¯¹ (cfm) | 0.75(0.5) | 1.6(1.2) | 17(12.1) | 17(12.1) | 27.5(19.5) |
Ultimate vacuum⁽¹⁾ | mbar(Torr) | 3.0 x 10¯³ (2.3 x 10¯³) | 1 x 10¯³ (7.4 x 10¯⁴) | |||
Ultimate pressure with gas ballast | mbar(Torr) | 1.2 x 10¯¹ (1.5 x 10¯¹) | 2.5 x 10¯² (1.9 x 10¯²) | 6.5 x 10¯² (4.8 x 10¯²) | 1.5 x 10¯² (1.1 x 10¯²) | |
Ultimate pressure with PFPE oil | mbar(Torr) | 3.0 x 10¯¹ (2.3 x 10¯²) | 1 x 10¯² (7.5 x 10¯³) | |||
Water vapour tolerance | mbar(Torr) | 15 (11) | 50 (38) | 20 (15) | 30 (23) | |
Water vapour capacity | gh¯¹ | 8 | 16 | 650 | 300 | 700 |
Maximum continuous inlet pressure | mbar a (Torr a) | 1013 (760) | ||||
Maximum gas ballast/purge pressure | bar gauge (psig) | 0.5 (7) | ||||
Motor Data | ||||||
Supply voltage | V | 100-120/200-400 (+/-10%) | 11/200-230 (+/-10%) | |||
Supply frequency | Hz | 50/60 | ||||
Motor power, 50 Hz (60 Hz) | W | 90 (90) | 160 (160) | 550 (750) | 750 (900) | |
Nominal rotation speed, 50 Hz (60 Hz) | rpm | 1400 (1700) | 2800 (3400) | 1440 (1720) | ||
Power connector⁽¹⁾ | IEC EN60320 C13 | IEC EN60320 C19 | ||||
Recommended fuse, 230 V (115 V) | A | 6 (10) | 15⁽³⁾ (25) | |||
Physical Data | ||||||
Weight | kg (lb) | 10 (20) | 37 (82) | 39 (86) | 44 (97) | |
Oil type (recommended) | Ultragrade 15 | Ultragrade 19 | ||||
Oil capacity (min-max) | litre | 0.2 – 0.28 | 0.9 – 1.4 | 0.75 – 1.05 | 1..2 – 1.5 | |
Inlet flange | NW10 | NW25 | ||||
Exhaust flange⁽²⁾ | Nozzle 11mm external Ø removable from 3/4 in BSP tapped hole | Nozzle 15 mm external diameter removable from 3/4 in BSP tapped hole | ||||
Noise level at ultimate (50 Hz) | dB(A) | 43 | 54 | 57 | ||
Noise with acoustic enclosure | dB(A) | 36 | 47 | 50 | ||
Vibration at inlet flange | mms¯¹ (rms) | No date | <4.5 | |||
Operating temperature range | °C | 12 – 40 | 13 – 40 |
(1) measured as total pressure
(2) pumps listed with IEC connector only
(3) for UK 240 V use 13 A fuse
(4) PFPE variants are supplied with NW25 outlet connection/br>
