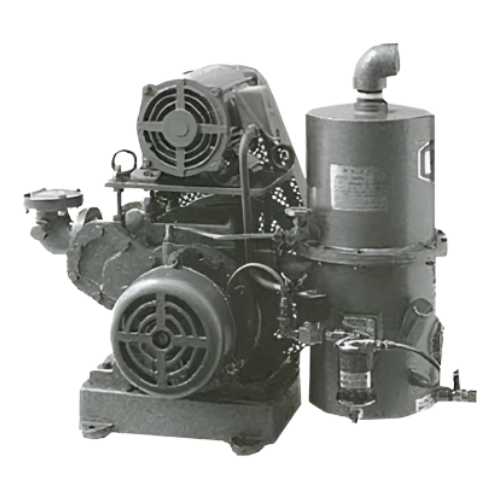

ปั๊มสุญญากาศ ( Vacuum Pump) OP รุ่น KV Series ตัวปั๊มออกแบบมาแข็งแรงทนทาน และง่ายต่อการดูแลบำรักษา สามารถดูดอากาศได้ ตั้งแต่ 550 – 3700 ลิตร/นาที กำลังมอเตอร์ตั้งแต่ 0.75 – 5.5 kW
Vacuum Pump OP Model KV Series is designed to be robust, durable, and easy to maintain. It is capable of air suction ranging from 550 to 3700 liters per minute, with motor power ranging from 0.75 to 5.5 kW.
ปั๊มสุญญากาศ ( Vacuum Pump) OP รุ่น KV Series สินค้าคุณภาพนำเข้าจากญี่ปุ่น เป็นปั๊มสุญญากาศ ระบบลูกสูบ แบบใช้น้ำมัน (Oil Rotary Piston) ตัวปั๊มออกแบบมาแข็งแรงทนทาน และง่ายต่อการดูแลบำรักษา สามารถดูดอากาศได้ ตั้งแต่ 550 – 3700 ลิตร/นาที กำลังมอเตอร์ตั้งแต่ 0.75 – 5.5 kW โดยมีรุ่นต่างๆ ให้เลือกใช้ดังนี้ KV-1A(S), KV-2(S), KV-3(S), KV-5WII(S) และรุ่น KV-7(S) เหมาะสำหรับ อุตสาหกรรมหนักๆ อาทิเช่น โรงประกอบรถยนต์, ผู้ผลิตชิ้นส่วนรถยนต์ เป็นต้น
Vacuum Pump OP Model KV Series is a high-quality product imported from Japan. It is an oil rotary piston vacuum pump designed to be robust, durable, and easy to maintain. It is capable of air suction ranging from 550 to 3700 liters per minute, with motor power ranging from 0.75 to 5.5 kW. There are various models available, including KV-1A(S), KV-2(S), KV-3(S), KV-5WII(S), and KV-7(S), catering to different needs. It is suitable for heavy industries such as automobile assembly plants and automotive component manufacturers
Model | OP KV-1A(S) | OP KV-2(S) | OP KV-3(S) | OP KV-5WII(S) | OP KV-7(S) | |
---|---|---|---|---|---|---|

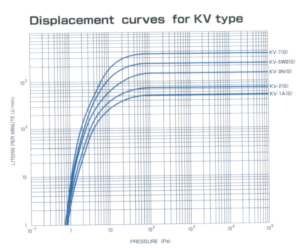

Free Air Displacement | l/min | 550 | 800 | 1500 | 2500 | 3700 |
Motor | kW | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 |
Ultimate Pressure | /min | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Pump Speed | Pa | 410 | 450 | 500 | 410 | 410 |
Intake Connection (Vacuum Flang) | 40 | 50 | 50 | 80 (V●G) | 80 (V●G) | |
Exhaust connection | PT1 | PT1¼ | PT1¼ | PT2 | 80 (V●G) | |
Oil Capacity | l | 2.6 | 4.4 | 5 | 13 | 16 |
Cooling Water | l/min | – | – | – | 5 | 8 |
Weight (w/out motor) | kg | 72 | 93 | 129 | 326 | 387 |
Motor Pulley | 50/60 Hz | 76/63 | 76/63 | 114/94 | 114/98 | 136/114 |
V-Belt | 50/60 Hz | A2-43 | A2-45 | A3-53/52 | B2-72/71 | B3-80/79 |
Noize (at 1.3kPa) | dB (A) | 59 | 62 | 64 | 64 | 67 |
