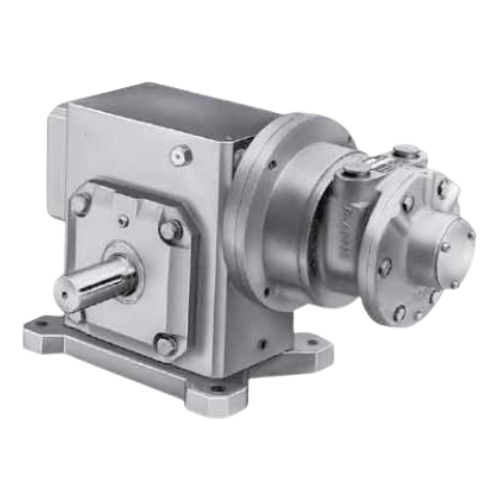

Air-Powered Gear Motors GAST 6AM-GB40(GM) Series

มอเตอร์ลมใส่เกียร์ทด รุ่น 6 AM-GB40(GM) Series สินค้านำเข้าจากอเมริกา ขนาดเล็ก กะทัดรัด เคลื่อนย้ายและติดตั้งสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ โดยสามารถทดรอบได้ถึง 40:1

Air-Powered Gear Motors GAST 6AM-GB40(GM) Series is imported product from America is small in size, compact, and allows for easy movement and installation. It can adjust the rotational speed according to the desired requirements, with a maximum gear ratio of 40:1



มอเตอร์ลมใส่เกียร์ทด GAST รุ่น 6AM-GB40(GM) Series

มอเตอร์ลมใส่เกียร์ทด รุ่น 6 AM-GB40(GM) series ขนาดเล็ก ติดตั้งง่าย และเคลื่อนย้ายสะดวก สามารถปรับความเร็วรอบได้ตามความต้องการ โดยตัวมอเตอร์เกียร์สามารถทดรอบเกียร์ได้ถึง 40:1 ซึ่งเหมาะสำหรับงานที่ต้องการลดรอบความเร็ว แต่เพิ่มแรงบิดให้สูงขึ้น เพื่อป้องกันมอเตอร์ไม่ให้เกิดความเสียหายซึ่งมอเตอร์ลมเป็นอุปกรณ์ไม่ใช้ไฟฟ้า ทำให้มอเตอร์ลม GASTสามารถใช้กับงานในสถานที่ที่อุณหภูมิสูง และอันตรายในพื้นที่ไวไฟได้

Air-Powered Gear Motors GAST 6AM-GB40(GM) Series

Air-Powered Gear Motors GAST 6AM-GB40(GM) Series​ is a compact and easy-to-install product that offers convenient movement and portability. It allows for adjustable rotational speeds according to specific requirements, with the gear mechanism capable of achieving a gear ratio of up to 40:1. This makes it suitable for applications that require a reduction in rotational speed while increasing torque to prevent motor damage. As an air-powered device, the GAST air motor does not require electricity, allowing it to be used in high-temperature environments and areas prone to fire hazards.

คุณสมบัติ

  • สามารถทดรอบได้ถึง 40:1
  • ลักษณะมอเตอร์ลมใส่เกียร์ทด เป็นแบบ Base mounting
  • สามารถติดตั้งเพลาเสริมได้
  • มาพร้อมกับ Muffler
  • ไม่ก่อให้เกิดประกายไฟ
  • เคลื่อนย้ายและติดตั้งสะดวก

Feature

  • It can achieve a gear ratio of up to 40:1.
  • The air motor is designed for base mounting.
  • It can be installed with additional pulleys.
  • It comes with a muffler.
  • It does not generate sparks.
  • It offers convenient movement and easy installation.

SPECIFICATION

MODEL GAST 6AM-22A-GB40 (40:1)
Mount BaseMounting
Rotation REVERSIBLE
Vane 8
Fitting in 1/2NPT
Motor HP 2.1
Max Speed RPM 75
Max Torque Nm 275
WxLxH mm 276x491x277
